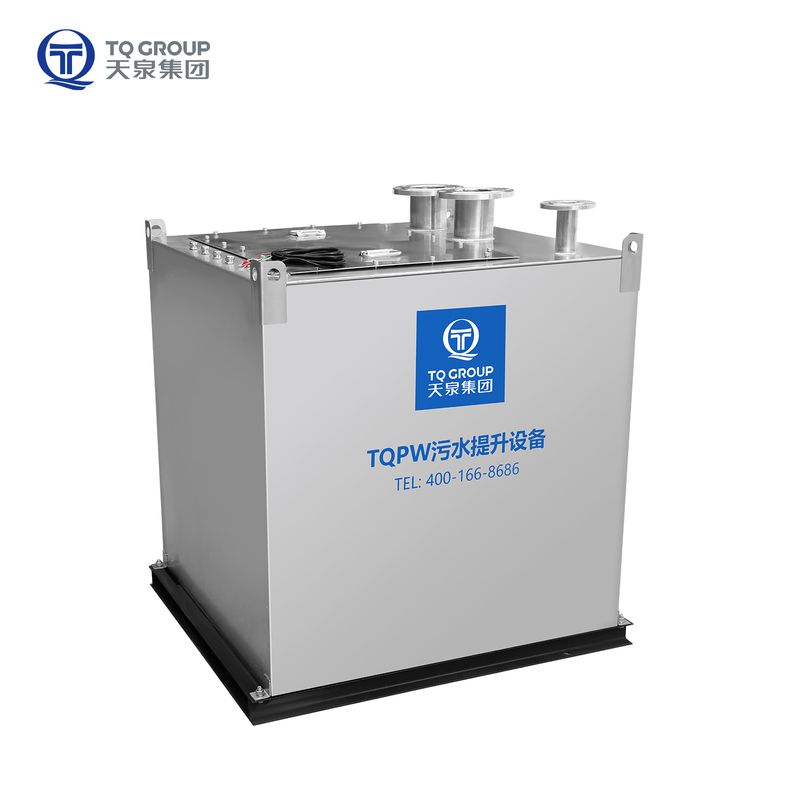

SS TQPW Sewage Lifting Equipment with Built-in Pumps


TQPW is an advanced application solution specially developed for sewage lifting treatment, which is suitable for non-corrosive sewage in almost all environments, such as water, fecal sewage, rainwater and so on. System automatically collects, stores and lift the sewage to the municipal sewage network. It is featured with small structure, reliable quality and environmental friendly.

Application

Commonly used in the small flow and small head occasion such as villa, club and small shopping centre
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • TQPW

Product Features
Product Structure
Hydraulic Performance
Others


Product Features



  • Completely sealed with no air pollution design.


  • The box size can be accommodated to the site need.


  • Different direction inlet selection for easy installation.


  • Easy pump maintenance (pump auto-coupling installation).


  • Overflow protection.


 Before purchase1



MODEL MEANING




Technical Parameters

Max Capacity 11 m3h Voltage 380V
Max Head 15m Frequency 50HZ
Speed

2950 RPM

 Max Motor Power 1.5kW
Outlet Diameter DN50-DN80 Efficiency Level IE3
Sealing type MECHANICAL SEAL Insulation Class F
Tank Material PE / SS304 Protection Class IP55
Number of Pump 1-2 Cooling Method

Water-COOLED
Product Certificate / Thermal Protection /



Product Structure

TQPW







Product Performance

Item No.

Model

Flow（m³/h）

Head（m）

PUMP POWER(kW)

suction diameter

discharge diameter

排气

直径



Control Cabinet

Outline Dimension

L*W*H（mm）

Installation Dimension

L*W*H（mm）

1

TQPW-S/II-10/10-N-1000

10

5-10

0.75

DN80

DN65

DN50

TQK-2L-0.75KW

1*1*1

2*2*1.5

2

TQPW-S/II-10/13-N-1000

10

10-13

1.1

DN80

DN65

DN50

TQK-2L-1.1KW

1*1*1

2*2*1.5

3

TQPW-S/II-10/20-N-1000

10

12-20

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

4

TQPW-S/II-12/10-N-1000

12

8-10

1.1

DN80

DN65

DN50

TQK-2L-1.1KW

1*1*1

2*2*1.5

5

TQPW-S/II-12/15-N-1000

12

10-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

6

TQPW-S/II-12/23-N-1000

12

20-23

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

7

TQPW-S/II-15/15-N-1000

15

8-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

8

TQPW-S/II-15/22-N-1000

15

15-22

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

9

TQPW-S/II-15/25-N-1000

15

22-25

3.0

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

10

TQPW-S/II-20/15-N-1000

20

11-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

11

TQPW-S/II-20/20-N-1000

20

15-20

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

12

TQPW-S/II-20/28-N-1000

20

20-28

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

13

TQPW-S/II-25/15-N-1000

25

12-15

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

14

TQPW-S/II-25/18-N-1000

25

15-18

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

15

TQPW-S/II-25/24-N-1000

25

18-24

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

16

TQPW-S/II-30/15-N-1000

30

12-15

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

17

TQPW-S/II-30/18-N-1000

30

15-18

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

18

TQPW-S/II-30/30-N-1700

30

18-30

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

19

TQPW-S/II-35/15-N-1000

35

7-15

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

20

TQPW-S/II-35/18-N-1000

35

15-18

4

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

21

TQPW-S/II-35/24-N-1700

35

18-24

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

22

TQPW-S/II-40/15-N-1000

40

10-15

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

23

TQPW-S/II-40/20-N-1700

40

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

24

TQPW-S/II-40/30-N-1700

40

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2

25

TQPW-S/II-45/15-N-1700

45

10-15

4

DN125

DN100

DN50

TQK-2L-4KW

1.2*1.2*1.2

2.5*2.5*2

26

TQPW-S/II-45/20-N-1700

45

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

27

TQPW-S/II-45/30-N-1700

45

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2

28

TQPW-S/II-50/15-N-1700

50

10-15

4

DN125

DN100

DN50

TQK-2L-4KW

1.2*1.2*1.2

2.5*2.5*2

29

TQPW-S/II-50/20-N-1700

50

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

30

TQPW-S/II-50/30-N-1700

50

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2







Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.


Product Features


Product Features



  • Completely sealed with no air pollution design.


  • The box size can be accommodated to the site need.


  • Different direction inlet selection for easy installation.


  • Easy pump maintenance (pump auto-coupling installation).


  • Overflow protection.


 Before purchase1



MODEL MEANING




Technical Parameters

Max Capacity 11 m3h Voltage 380V
Max Head 15m Frequency 50HZ
Speed

2950 RPM

 Max Motor Power 1.5kW
Outlet Diameter DN50-DN80 Efficiency Level IE3
Sealing type MECHANICAL SEAL Insulation Class F
Tank Material PE / SS304 Protection Class IP55
Number of Pump 1-2 Cooling Method

Water-COOLED
Product Certificate / Thermal Protection /


Product Structure


Product Structure

TQPW






Hydraulic Performance


Product Performance

Item No.

Model

Flow（m³/h）

Head（m）

PUMP POWER(kW)

suction diameter

discharge diameter

排气

直径



Control Cabinet

Outline Dimension

L*W*H（mm）

Installation Dimension

L*W*H（mm）

1

TQPW-S/II-10/10-N-1000

10

5-10

0.75

DN80

DN65

DN50

TQK-2L-0.75KW

1*1*1

2*2*1.5

2

TQPW-S/II-10/13-N-1000

10

10-13

1.1

DN80

DN65

DN50

TQK-2L-1.1KW

1*1*1

2*2*1.5

3

TQPW-S/II-10/20-N-1000

10

12-20

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

4

TQPW-S/II-12/10-N-1000

12

8-10

1.1

DN80

DN65

DN50

TQK-2L-1.1KW

1*1*1

2*2*1.5

5

TQPW-S/II-12/15-N-1000

12

10-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

6

TQPW-S/II-12/23-N-1000

12

20-23

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

7

TQPW-S/II-15/15-N-1000

15

8-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

8

TQPW-S/II-15/22-N-1000

15

15-22

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

9

TQPW-S/II-15/25-N-1000

15

22-25

3.0

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

10

TQPW-S/II-20/15-N-1000

20

11-15

1.5

DN80

DN65

DN50

TQK-2L-1.5KW

1*1*1

2*2*1.5

11

TQPW-S/II-20/20-N-1000

20

15-20

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

12

TQPW-S/II-20/28-N-1000

20

20-28

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

13

TQPW-S/II-25/15-N-1000

25

12-15

2.2

DN80

DN65

DN50

TQK-2L-2.2KW

1*1*1

2*2*1.5

14

TQPW-S/II-25/18-N-1000

25

15-18

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

15

TQPW-S/II-25/24-N-1000

25

18-24

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

16

TQPW-S/II-30/15-N-1000

30

12-15

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

17

TQPW-S/II-30/18-N-1000

30

15-18

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

18

TQPW-S/II-30/30-N-1700

30

18-30

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

19

TQPW-S/II-35/15-N-1000

35

7-15

3

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

20

TQPW-S/II-35/18-N-1000

35

15-18

4

DN80

DN65

DN50

TQK-2L-3KW

1*1*1

2*2*1.5

21

TQPW-S/II-35/24-N-1700

35

18-24

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

22

TQPW-S/II-40/15-N-1000

40

10-15

4

DN80

DN65

DN50

TQK-2L-4KW

1*1*1

2*2*1.5

23

TQPW-S/II-40/20-N-1700

40

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

24

TQPW-S/II-40/30-N-1700

40

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2

25

TQPW-S/II-45/15-N-1700

45

10-15

4

DN125

DN100

DN50

TQK-2L-4KW

1.2*1.2*1.2

2.5*2.5*2

26

TQPW-S/II-45/20-N-1700

45

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

27

TQPW-S/II-45/30-N-1700

45

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2

28

TQPW-S/II-50/15-N-1700

50

10-15

4

DN125

DN100

DN50

TQK-2L-4KW

1.2*1.2*1.2

2.5*2.5*2

29

TQPW-S/II-50/20-N-1700

50

15-20

5.5

DN125

DN100

DN50

TQK-2L-5.5KW

1.2*1.2*1.2

2.5*2.5*2

30

TQPW-S/II-50/30-N-1700

50

20-30

7.5

DN125

DN100

DN50

TQK-2L-7.5KW

1.2*1.2*1.2

2.5*2.5*2






Others


Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.
