TP

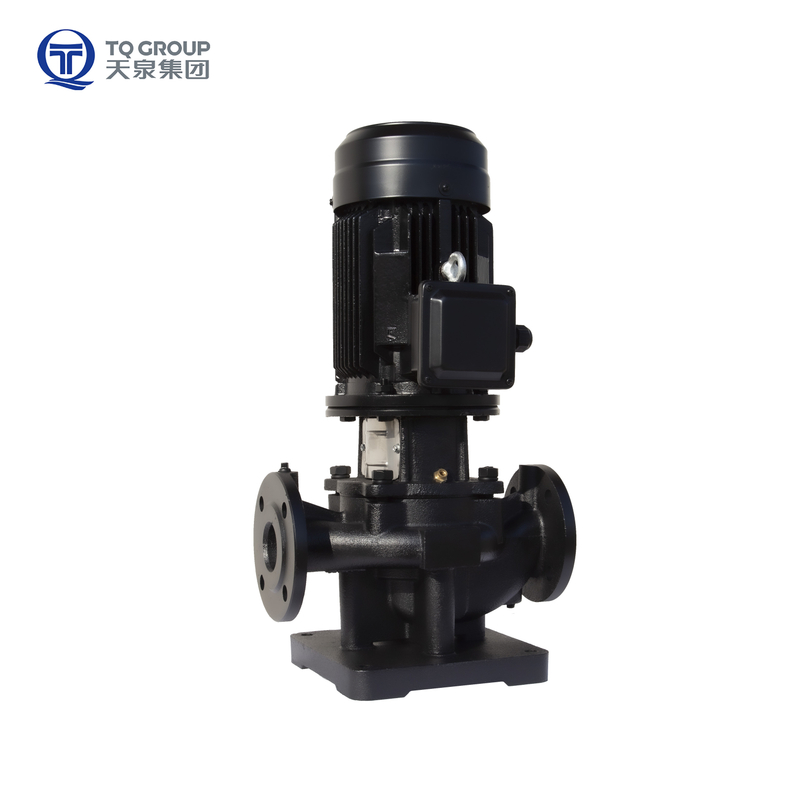

TQPUMPS presents the TP Vertical Inline pump, a high-efficiency inline pump designed for various applications. This vertical centrifugal pump features a compact, space-saving design that allows for flexible installation.
Constructed with high-quality stainless steel, the TP Vertical Inline pump offers excellent corrosion resistance and durability. The advanced hydraulic design of the impeller ensures optimal performance and efficiency.
The pump is equipped with a reliable mechanical seal, providing excellent sealing performance and extended service life. It is driven by an energy-efficient IE3 motor, ensuring smooth operation and low noise levels.
With a wide range of models available, the TP Vertical Inline pump can handle flow rates up to 1700m³/h and heads up to 150m. It is suitable for pumping clean or slightly contaminated liquids in various industrial and commercial applications.
The TP Vertical Inline pump is easy to maintain, with a user-friendly design that allows for simple disassembly and cleaning. It offers significant energy savings, reducing operating costs for your facility.
| Parameter | Value |
|---|---|
| Max. Flow Rate | 1700m³/h |
| Voltage | 380V |
| Max. Head | 150m |
| Frequency | 50Hz |
| Speed | 2950/1480/985RPM |
| Max. Motor Power | 315KW |
| Structure | Vertical |
| Installation Type | B5 |
| Outlet Diameter | DN32-DN350 |
| Efficiency Class | IE3 |
| Seal Type | Mechanical Seal |
| Insulation Class | F |
| Max. Working Pressure | PN16/PN25 |
| Protection Class | IP55 |
| Liquid Temperature | -20°C~140°C |
| Cooling Method | Air-cooled |
| Product Certification | CE |
| Warranty | Two Years |
Product Features
World-class hydraulic design ensures high efficiency across a wide range of operating conditions
Advanced impeller design provides optimal performance and stability, even in demanding high-flow and high-head applications
Our vertical inline pumps offer comprehensive performance curves to meet your specific requirements
Constructed with premium stainless steel materials for exceptional corrosion resistance and reliability
Designed for a service life of 30 years, ensuring long-lasting performance in your facility
We stand behind our products with a two-year warranty, giving you peace of mind
Equipped with high-quality mechanical seals for superior sealing performance and extended service life
Our pumps feature energy-efficient IE3 motors for smooth, quiet operation and reduced energy consumption
Experience significant energy savings and lower operating costs with our efficient inline circulation pumps
Compact, space-saving design allows for flexible installation in various settings
Suitable for pumping a wide range of clean or slightly contaminated liquids in different applications
Simple maintenance with easy disassembly and cleaning, ensuring minimal downtime
Experience the difference with our high-efficiency inline pumps, designed to deliver outstanding performance and reliability in your application.
Product Structure
Manufactured from high-quality HT250/QT500 materials for TP Vertical Inline pumps
Available in PN16 or PN25 pressure ratings to suit your application
Constructed from durable HT200 cast iron for reliable performance
Optional SS304 stainless steel impellers available for enhanced corrosion resistance
Made from HT250 material, complying with GB/T9439-1988 standard
Designed to provide optimal protection and sealing for the pump
Available in two materials: 0Cr18Ni9 and 2Cr13 for different industrial pump parts specifications
Engineered for strength and durability in demanding applications
EPDM and FXM seal ring pump materials for versatile sealing solutions
Rated for high-temperature resistance up to 120°C (248°F)
Equipped with FU1 type mechanical seal, complying with UN EN12756 standard
Ensures reliable sealing and minimizes leakage in vertical inline pump applications
Manufactured from ZCuSn10ZN2 material for optimal sealing performance
Designed to work seamlessly with the pump casing in TP Vertical Inline pumps
Utilizes the same high-quality material as the pump casing seal ring
Provides consistent sealing performance throughout the pump
Constructed from robust HT200 cast iron, meeting T210 standard requirements
Offers a stable foundation for the vertical inline pump assembly
All components undergo rigorous testing to ensure optimal performance
Every product is subjected to comprehensive performance and leakage tests
Advanced CNC machining equipment ensures precise manufacturing tolerances
Automated production lines guarantee consistent product quality
State-of-the-art testing center for comprehensive performance evaluation
Trust TQPUMPS for high-quality components and unmatched performance in your vertical inline pump applications.
Model selection instructions
|
|
Q1: What is the maximum flow rate of the TP Vertical Inline pump?
A1: Our vertical inline pumps can handle flow rates up to 1700m³/h, meeting your high-flow requirements.
Q2: How energy-efficient are your vertical centrifugal pumps?
A2: We use IE3 motors, advanced hydraulic designs, and optimized components to maximize energy efficiency and reduce operating costs.
Q3: What materials are used in the construction of your inline circulation pumps?
A3: Our pumps feature high-quality stainless steel, cast iron, and other durable materials for long-lasting performance and reliability.
Q4: Can your pumps handle high-temperature liquids?
A4: Yes, our pumps are designed to handle liquid temperatures ranging from -20°C to 140°C (-4°F to 284°F).
Q5: What is the warranty period for your TP Vertical Inline pumps?
A5: We offer a comprehensive two-year warranty on our vertical inline pumps, ensuring your peace of mind.
Q6: How do your pumps compare to other industrial pump manufacturers in terms of performance?
A6: Our pumps deliver world-class hydraulic performance, with high efficiency across a wide range of operating conditions.
Q7: What is the maximum head that your vertical inline pumps can achieve?
A7: Our pumps can reach a maximum head of 150m, making them suitable for demanding high-head applications.
Q8: How easy is it to maintain and clean your inline circulation pumps?
A8: Our pumps feature a user-friendly design that allows for simple disassembly, cleaning, and maintenance, minimizing downtime.
