TWX Horizontal Long Coupled End Suction Pump Features

1. Energy Efficiency Optimization

• Advanced hydraulic design reduces motor power consumption

• Wider operation range improves system flexibility

• Lower procurement and operating costs through optimized performance

• Energy-saving features decrease long-term operational expenses

• CFD-analyzed flow patterns maximize efficiency ratings




2. High-Temperature Adaptability

• Operates efficiently in temperatures up to 150°C

• Specialized bearing bracket structure for extreme conditions

• Multiple material seal options for various media types

• Enhanced cooling system for bearing protection

• Temperature-resistant components ensure stable performance




3. Extended Service Life

• NSK bearings provide superior rotation stability

• Axial force balanced impellers reduce mechanical stress

• PN16 pump bodies ensure structural integrity

• Smooth operation reduces component wear

• Premium materials extend maintenance intervals




4. Load Management System

• Non-overload design prevents system failures

• Automatic performance range adjustment

• Stable operation within design parameters

• Protected against sudden pressure fluctuations

• Integrated safety features for continuous operation




5. Advanced Monitoring Capabilities

• Real-time vibration monitoring system

• Temperature tracking for critical components

• Preventive maintenance alert system

• Operational state feedback mechanisms

• Remote monitoring options available




Key Benefits:

• Reduced maintenance requirements

• Lower operational costs

• Extended equipment lifespan

• Improved system reliability

• Enhanced performance monitoring




Technical Support:

• Professional engineering consultation

• Performance optimization services

• Custom solution development

• Regular maintenance programs

• 24/7 technical assistance

Key Components of the TWX Horizontal Long Coupled End Suction Pump

1. High-efficiency Motor

• IE3 or IE4 motor for optimal energy efficiency

• Reduces operating costs and environmental impact

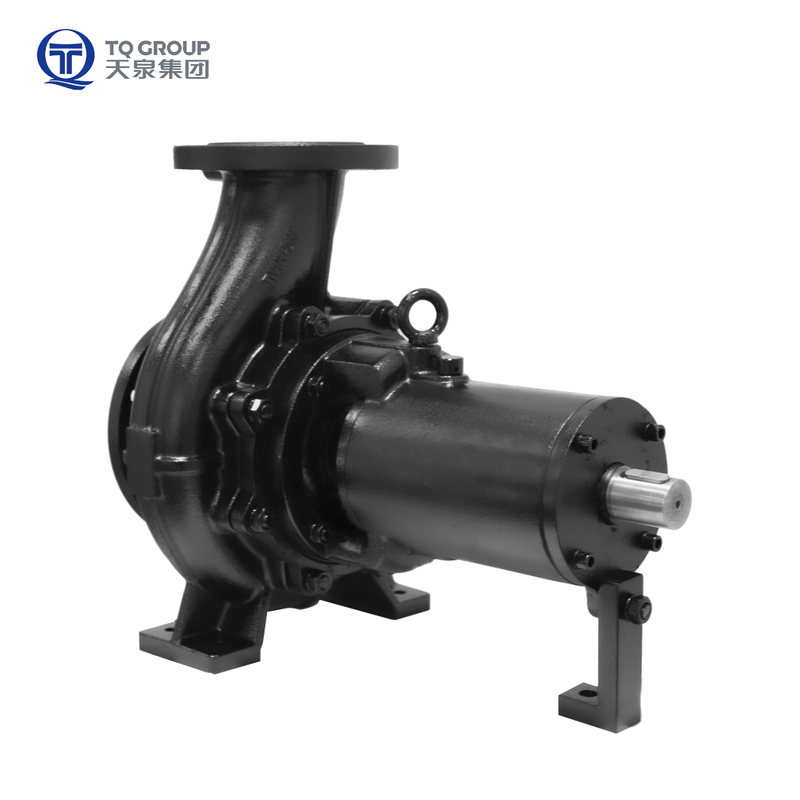

2. Bearing bracket

• Equipped with standard, high load maintenance-free rolling bearing and lubricate

• Ensures long-term reliability and smooth operation




3. Copper Seal Ring

• Replaceable copper seal rings at both ends of pump body

• Protects pump body from wear, ensuring high efficiency




4. Flexible Coupling

• Equipped with flexible membrane or elastic pin coupling

• Easy disassembly for simplified maintenance and alignment




5. Impeller

• Designed with balanced holes to offset axial forces and improve life

• H1200 cast iron as standard for durability




6. Pump Casing

• The designed pressure of pump body is 16 bar or 26 times that structure pressure

• Improves hydraulic performance, maximizing flow efficiency

These key components work together seamlessly to create a robust and efficient industrial water pump. The TWX series is ideal for a wide range of applications, providing reliable and cost-effective pumping solutions. Contact TQPUMPS, a trusted end suction centrifugal pump manufacturer, to learn more about how the TWX horizontal centrifugal pump can meet your specific needs.

Product Structure

Model selection instructions

FAQs

Q1: What are the key features of the TWX horizontal long coupled end suction pump?

A1: The TWX pump features a high-efficiency motor, robust bearing bracket, replaceable copper seal rings, flexible coupling, and durable impeller and casing.

Q2: How does the TWX pump's design contribute to its efficiency and reliability?

A2: The balanced impeller design, high-quality components, and optimized hydraulics ensure excellent efficiency and reliability in various industrial applications.

Q3: What are the benefits of using an IE3 or IE4 motor in the TWX pump?

A3: IE3 and IE4 motors significantly reduce energy consumption and operating costs while minimizing the environmental impact of pumping operations.

Q4: How does the bearing bracket contribute to the TWX pump's long-term performance?

A4: The bearing bracket, equipped with high-load, maintenance-free rolling bearings and lubrication, ensures smooth operation and long-term reliability.

Q5: What role do the replaceable copper seal rings play in the TWX pump?

A5: The copper seal rings protect the pump body from wear, maintaining high efficiency and extending the pump's service life.

Q6: How does the flexible coupling simplify maintenance and alignment procedures?

A6: The flexible coupling allows for easy disassembly, simplifying maintenance tasks and ensuring precise alignment between the pump and motor.

Q7: What materials are used in the construction of the TWX pump's impeller and casing?

A7: The impeller is made of durable H1200 cast iron, while the casing is designed to withstand high pressures for improved performance.

Q8: How can I determine if the TWX horizontal centrifugal pump is suitable for my industrial application?

A8: Contact our experienced team to discuss your specific requirements and explore how the TWX pump can provide an efficient, reliable pumping solution.
