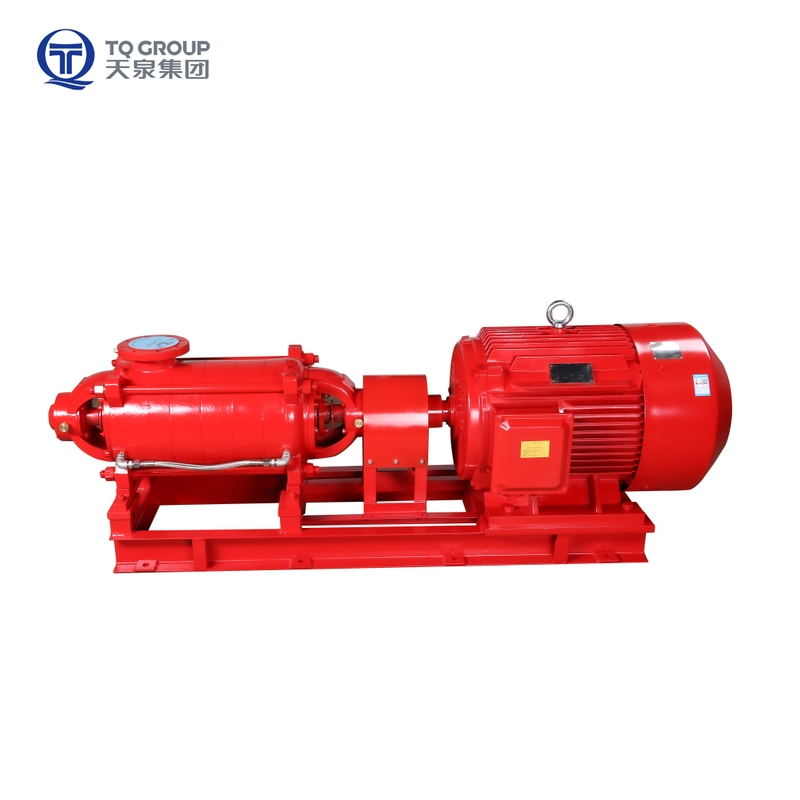

XBD-DW
The XBD-DW Horizontal Multistage Fire Pump from TQPUMPS is a high-performance centrifugal fire pump designed for efficient firefighting in various applications. With a maximum flow rate of 100L/S and a maximum head of 200 meters, this fire fighting pump delivers reliable and powerful performance when it matters most.
The multistage design of the XBD-DW ensures high pressure output, making it suitable for high-rise buildings and other challenging environments. The pump features a compact horizontal configuration, allowing for easy installation and maintenance in space-limited areas.
Powered by an IE3 efficiency class motor with a maximum power of 185kW, the XBD-DW operates at 380V and 50HZ, ensuring optimal energy efficiency and cost-effectiveness. The pump's operating speed of 2900 RPM enables rapid water delivery during emergencies.
The XBD-DW is built to last, with a robust mechanical seal and an IP54 protection rating, ensuring reliable operation in demanding conditions. The pump can handle liquid temperatures ranging from -15°C to 80°C and is cooled by an efficient air cooling system.
Customization options are available to tailor the XBD-DW to specific project requirements. TQPUMPS provides exceptional online after-sales service to support customers throughout the product lifecycle. With its superior performance and reliability, the XBD-DW Horizontal Multistage Fire Pump is the ideal choice for fire safety in a wide range of industries.
| Parameter | Value |
|---|---|
| Maximum Flow Rate | 100L/S |
| Voltage | 380V |
| Maximum Head | 200 meters |
| Frequency | 50HZ |
| Speed | 2900 RPM |
| Maximum Motor Power | 185kW |
| Structure | Horizontal Multistage Single Suction |
| Installation Type | B5 |
| Outlet Diameter | DN100-DN200 |
| Efficiency Class | IE3 |
| Seal Type | Mechanical Seal |
| Insulation Class | F |
| Maximum Working Pressure | PN16/PN25 |
| Protection Rating | IP54 |
| Liquid Temperature Range | -15°C~80°C |
| Cooling Method | Air Cooling |
| Drive Type | Electric Motor |
| Impeller | Closed |
| Packaging | Wooden Case |
| Customization | Available |
| After-sales Service | Online Service |
| Origin | China |
Hydraulic Performance
| Item.No | Model | Stage | Flow | Head | Speed | Motor Power | |
| m³/h | L/s | m | r/min | kW | |||
| 1 | 100DW72-40 | 2 | 50 | 13.89 | 2900 | 37 | |
| 72 | 20 | 80 | |||||
| 86.4 | 24 | ||||||
| 2 | 3 | 50 | 13.89 | 45 | |||
| 72 | 20 | 120 | |||||
| 86.4 | 24 | ||||||
| 3 | 4 | 50 | 13.89 | 55 | |||
| 72 | 20 | 160 | |||||
| 86.4 | 24 | ||||||
| 4 | 5 | 50 | 13.89 | 75 | |||
| 72 | 20 | 200 | |||||
| 86.4 | 24 | ||||||
| 5 | 100DW108-40 | 2 | 70 | 19.44 | 2900 | 45 | |
| 108 | 30 | 80 | |||||
| 126 | 35 | ||||||
| 6 | 3 | 70 | 19.44 | 55 | |||
| 108 | 30 | 120 | |||||
| 126 | 35 | ||||||
| 7 | 4 | 70 | 19.44 | 75 | |||
| 108 | 30 | 160 | |||||
| 126 | 35 | ||||||
| 8 | 5 | 70 | 19.44 | 110 | |||
| 108 | 30 | 200 | |||||
| 126 | 35 | ||||||
| 9 | 150DW144-40 | 2 | 100.8 | 28 | 2900 | 55 | |
| 144 | 40 | 80 | |||||
| 172.8 | 48 | ||||||
| 10 | 3 | 100.8 | 28 | 75 | |||
| 144 | 40 | 120 | |||||
| 172.8 | 48 | ||||||
| 11 | 4 | 100.8 | 28 | 110 | |||
| 144 | 40 | 160 | |||||
| 172.8 | 48 | ||||||
| 12 | 5 | 100.8 | 28 | 132 | |||
| 144 | 40 | 200 | |||||
| 172.8 | 48 | ||||||
| 13 | 150DW162-40 | 2 | 113.4 | 31.5 | 2900 | 55 | |
| 162 | 45 | 80 | |||||
| 194.4 | 54 | ||||||
| 14 | 3 | 113.4 | 31.5 | 90 | |||
| 162 | 45 | 120 | |||||
| 194.4 | 54 | ||||||
| 15 | 4 | 113.4 | 31.5 | 110 | |||
| 162 | 45 | 160 | |||||
| 194.4 | 54 | ||||||
| 16 | 5 | 113.4 | 31.5 | 132 | |||
| 162 | 45 | 200 | |||||
| 194.4 | 54 | ||||||
| 17 | 200DW280-40 | 2 | 196 | 54.44 | 2950 | 90 | |
| 280 | 77.78 | 80 | |||||
| 336 | 93.33 | ||||||
| 18 | 3 | 196 | 54.44 | 132 | |||
| 280 | 77.78 | 120 | |||||
| 336 | 93.33 | ||||||
| 19 | 4 | 196 | 54.44 | 185 | |||
| 280 | 77.78 | 160 | |||||
| 336 | 93.33 | ||||||
| 20 | 5 | 196 | 54.44 | 220 | |||
| 280 | 77.78 | 200 | |||||
| 336 | 93.33 | ||||||
| 21 | 200DW350-40 | 2 | 245 | 68.06 | 2950 | 110 | |
| 350 | 97.22 | 80 | |||||
| 420 | 116.67 | ||||||
| 22 | 3 | 245 | 68.06 | 185 | |||
| 350 | 97.22 | 120 | |||||
| 420 | 116.67 | ||||||
| 23 | 4 | 245 | 68.06 | 220 | |||
| 350 | 97.22 | 160 | |||||
| 420 | 116.67 | ||||||
| 24 | 5 | 245 | 68.06 | 280 | |||
| 350 | 97.22 | 200 | |||||
| 420 | 116.67 | ||||||
High pressure output with multistage design, reaching heads up to 200 meters
Ensures ample water supply for firefighting with large flow capacity
Optimized hydraulic design and high-efficiency motor for energy savings up to 80%
Horizontal, single-suction, multistage, sectional structure for compact and aesthetic design
High concentricity of components ensures smooth operation and low noise levels
Quality mechanical seals provide excellent wear resistance and leak-free performance
Convenient maintenance without the need to dismantle pipelines
Horizontal installation saves space and simplifies setup in various scenarios
Advanced manufacturing processes and high-quality components ensure long-term stability
Ideal for fire safety systems in high-rise buildings, industrial parks, and logistics centers
Meets the firefighting needs of airports, train stations, and other public transportation hubs
Provides reliable fire protection for the oil and chemical industry
When you choose the XBD-DW centrifugal fire pump, you can trust that you're getting a top-performing solution for your fire fighting system. Its efficient design and robust construction make it the perfect choice for a wide range of applications where reliability and performance are paramount.
The XBD-DW Horizontal Multistage Fire Pump comprises various components made from high-quality materials. The suction case, guide vanes, stage case, and discharge case are constructed using HT200 ductile iron. Key parts like the shaft, impeller, last guide vanes, and balancing house also utilize HT200 for durability.
The pump features a 45# carbon steel tie bolt and bearing outer ring for strength. Sealing is ensured by an HT250 sealing house and HT200 mechanical seals. O-rings made from EPDM provide reliable sealing performance.
Elastic pin coupling parts (HT200) connect the pump to the motor. A rough felt felt washer and 45# carbon steel nut secure the assembly. The base plate supporting the pump is made from sturdy HT200 ductile iron.
These carefully selected materials and components contribute to the pump's overall robustness and efficiency in firefighting applications. The combination of ductile iron, carbon steel, and high-quality seals ensures long-lasting performance in demanding conditions.
Model selection instructions
|
|
Q1: What is the maximum flow rate of the XBD-DW horizontal fire pump?
A1: The XBD-DW fire fighting pump can achieve a maximum flow rate of 100L/S.
Q2: How high can the multistage fire pump lift water?
A2: With its multistage design, the pump can reach heads up to 200 meters.
Q3: Is the XBD-DW fire pump energy-efficient?
A3: Yes, the optimized hydraulic design and IE3 efficiency motor ensure energy savings up to 80%.
Q4: What is the maximum motor power of the XBD-DW pump?
A4: The pump is powered by a motor with a maximum power of 185kW.
Q5: Can the horizontal multistage fire pump be customized for specific projects?
A5: Yes, we offer customization options to tailor the pump to your unique requirements.
Q6: What kind of sealing does the XBD-DW pump use?
A6: The pump features a high-quality mechanical seal for excellent leak-free performance and durability.
Q7: Is the XBD-DW centrifugal fire pump suitable for high-rise buildings?
A7: Absolutely, the pump's high pressure output makes it ideal for fire safety in high-rises.
Q8: How does the horizontal installation of the XBD-DW pump benefit users?
A8: The horizontal configuration saves space and simplifies maintenance in various installation scenarios.
