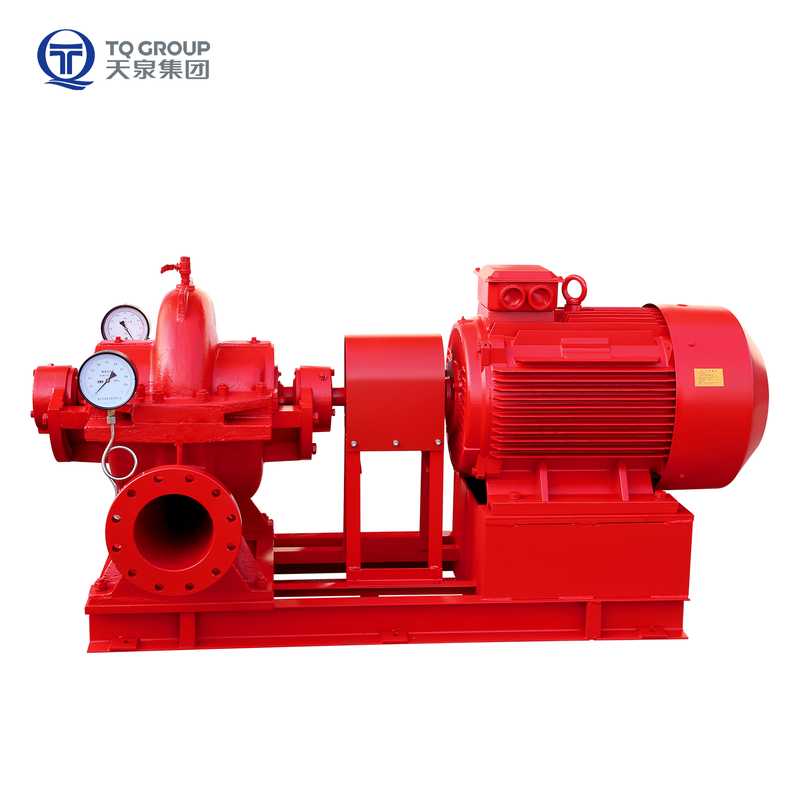

XBD-SOW Horizontal Double Sucrion Split Case Fire PUMP


XBD-SOW Horizontal Single Stage Double Suction Split Case Fire Pump is known for its high flow rate and is widely used in industrial fire protection systems, such as fire hydrant extinguishing systems and automatic sprinkler systems in factories, power plants, logistics centers, ports, coal mines, and other facilities.
The XBD-SOW fire pumps have a flow rate range of 110L/s to 420L/s, a motor power up to 400KW. XBD-SOW double suction fire pumps are made with high-quality components, with impellers made of 304 stainless steel, shafts made of 20CR13, and equipped with YE3 low-voltage electric ACmotors, ensuring reliable and stable operation of the products.

Application

· Fire fighting system
· Automatic sprinkler systems in factories, power plants, logistics centers, ports, coal mines
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • XBD-SOW

Product Features
Product Structure
Hydraulic Performance
Others


Product Features



  • Comprehensive performance curve and meet the needs of large flow and high lift condition.


  • Reliable quality with stainless steel wet parts and NSK bearing.


  • Two year warranty.


 Before purchase1



Model Meaning


XBD-SOW


Technical Parameters


Max Flow 420 L/S Voltage 380V
Max Head 120 m Frequency 50HZ
Speed

1450RPM

 Max Motor Power 400kW
Structure Horizontal Double Suction Mounting type B3
Outlet Diameter DN150-DN350 Efficiency Level IE2
Sealing type mechanical seal or packing seal Insulation Class F
Working Pressure Max PN16/PN25 Protection Class IP54
Liquid Temperature 80C Cooling Method

TEFC
Product Certificate / Thermal Protection Optional



Product Structure






Hydraulic Performance


NoModelInlet/Outlet DINRated Flow (L/s)Rated Head
（MPa)		Power
(kW)		Speed(r/min)
1XBD9.0/110G-SOW200/1501100.91851450
2XBD4.5/120G-SOW200/1501200.45901450
3XBD6.0/120G-SOW200/1501200.61321450
4XBD7.0/120G-SOW200/1501200.71321450
5XBD8.8/120G-SOW200/1501200.882001450
6XBD9.7/120G-SOW200/1501200.972201450
7XBD10.6/120G-SOW200/1501201.062501450
8XBD5.5/130G-SOW200/1501300.551101450
9XBD9.0/130G-SOW200/1501300.92001450
10XBD10.0/130G-SOW200/15013012501450
11XBD6.0/140G-SOW200/1501400.61321450
12XBD6.6/140G-SOW250/2001400.661601450
13XBD7.0/140G-SOW250/2001400.71601450
14XBD8.0/140G-SOW250/2001400.82001450
15XBD9.0/140G-SOW250/2001400.92001450
16XBD7.8/150G-SOW250/2001500.782201450
17XBD9.0/150G-SOW250/2001500.92201450
18XBD10.5/150G-SOW250/2001501.052801450
19XBD11.5/150G-SOW250/2001501.153151450
20XBD12.2/150G-SOW250/2001501.223151450
21XBD13.0/150G-SOW250/2001501.33551450
22XBD14.0/150G-SOW250/2001501.44001450
23XBD6.5/160G-SOW250/2001600.652001450
24XBD7.0/160G-SOW250/2001600.72201450
25XBD8.8/160G-SOW250/2001600.882501450
26XBD9.8/160G-SOW250/2001600.983151450
27XBD10.5/160G-SOW250/2001601.053151450
28XBD9.0/190G-SOW300/2501900.92501450
29XBD5.2/200G-SOW300/2502000.521601450
30XBD7.0/200G-SOW300/2502000.72201450
31XBD8.0/200G-SOW300/2502000.82801450
32XBD9.2/200G-SOW300/2502000.923151450
33XBD10.0/200G-SOW300/25020013551450
34XBD11.0/200G-SOW300/2502001.14001450
35XBD6.6/260G-SOW300/2502600.662501450
36XBD9.2/260G-SOW300/2502600.924001450
37XBD5.3/280G-SOW300/2502800.532201450
38XBD6.5/280G-SOW300/2502800.652501450
39XBD7.5/280G-SOW300/2502800.753151450
40XBD8.0/280G-SOW300/2502800.83551450
41XBD8.5/280G-SOW300/2502800.854001450
42XBD7.5/290G-SOW300/2502900.753151450
43XBD6.6/300G-SOW400/3003000.663151450
44XBD7.0/300G-SOW400/3003000.73551450
45XBD7.4/300G-SOW400/3003000.743551450
46XBD8.2/300G-SOW400/3003000.824001450
47XBD6.9/310G-SOW400/3003100.693151450
48XBD8.0/320G-SOW400/3003200.84001450
49XBD4.7/400G-SOW400/3004000.474001450
50XBD4.5/420G-SOW400/3504200.454001450


Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.


Product Features


Product Features



  • Comprehensive performance curve and meet the needs of large flow and high lift condition.


  • Reliable quality with stainless steel wet parts and NSK bearing.


  • Two year warranty.


 Before purchase1



Model Meaning


XBD-SOW


Technical Parameters


Max Flow 420 L/S Voltage 380V
Max Head 120 m Frequency 50HZ
Speed

1450RPM

 Max Motor Power 400kW
Structure Horizontal Double Suction Mounting type B3
Outlet Diameter DN150-DN350 Efficiency Level IE2
Sealing type mechanical seal or packing seal Insulation Class F
Working Pressure Max PN16/PN25 Protection Class IP54
Liquid Temperature 80C Cooling Method

TEFC
Product Certificate / Thermal Protection Optional


Product Structure


Product Structure





Hydraulic Performance


Hydraulic Performance


NoModelInlet/Outlet DINRated Flow (L/s)Rated Head
（MPa)		Power
(kW)		Speed(r/min)
1XBD9.0/110G-SOW200/1501100.91851450
2XBD4.5/120G-SOW200/1501200.45901450
3XBD6.0/120G-SOW200/1501200.61321450
4XBD7.0/120G-SOW200/1501200.71321450
5XBD8.8/120G-SOW200/1501200.882001450
6XBD9.7/120G-SOW200/1501200.972201450
7XBD10.6/120G-SOW200/1501201.062501450
8XBD5.5/130G-SOW200/1501300.551101450
9XBD9.0/130G-SOW200/1501300.92001450
10XBD10.0/130G-SOW200/15013012501450
11XBD6.0/140G-SOW200/1501400.61321450
12XBD6.6/140G-SOW250/2001400.661601450
13XBD7.0/140G-SOW250/2001400.71601450
14XBD8.0/140G-SOW250/2001400.82001450
15XBD9.0/140G-SOW250/2001400.92001450
16XBD7.8/150G-SOW250/2001500.782201450
17XBD9.0/150G-SOW250/2001500.92201450
18XBD10.5/150G-SOW250/2001501.052801450
19XBD11.5/150G-SOW250/2001501.153151450
20XBD12.2/150G-SOW250/2001501.223151450
21XBD13.0/150G-SOW250/2001501.33551450
22XBD14.0/150G-SOW250/2001501.44001450
23XBD6.5/160G-SOW250/2001600.652001450
24XBD7.0/160G-SOW250/2001600.72201450
25XBD8.8/160G-SOW250/2001600.882501450
26XBD9.8/160G-SOW250/2001600.983151450
27XBD10.5/160G-SOW250/2001601.053151450
28XBD9.0/190G-SOW300/2501900.92501450
29XBD5.2/200G-SOW300/2502000.521601450
30XBD7.0/200G-SOW300/2502000.72201450
31XBD8.0/200G-SOW300/2502000.82801450
32XBD9.2/200G-SOW300/2502000.923151450
33XBD10.0/200G-SOW300/25020013551450
34XBD11.0/200G-SOW300/2502001.14001450
35XBD6.6/260G-SOW300/2502600.662501450
36XBD9.2/260G-SOW300/2502600.924001450
37XBD5.3/280G-SOW300/2502800.532201450
38XBD6.5/280G-SOW300/2502800.652501450
39XBD7.5/280G-SOW300/2502800.753151450
40XBD8.0/280G-SOW300/2502800.83551450
41XBD8.5/280G-SOW300/2502800.854001450
42XBD7.5/290G-SOW300/2502900.753151450
43XBD6.6/300G-SOW400/3003000.663151450
44XBD7.0/300G-SOW400/3003000.73551450
45XBD7.4/300G-SOW400/3003000.743551450
46XBD8.2/300G-SOW400/3003000.824001450
47XBD6.9/310G-SOW400/3003100.693151450
48XBD8.0/320G-SOW400/3003200.84001450
49XBD4.7/400G-SOW400/3004000.474001450
50XBD4.5/420G-SOW400/3504200.454001450
Others


Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.
