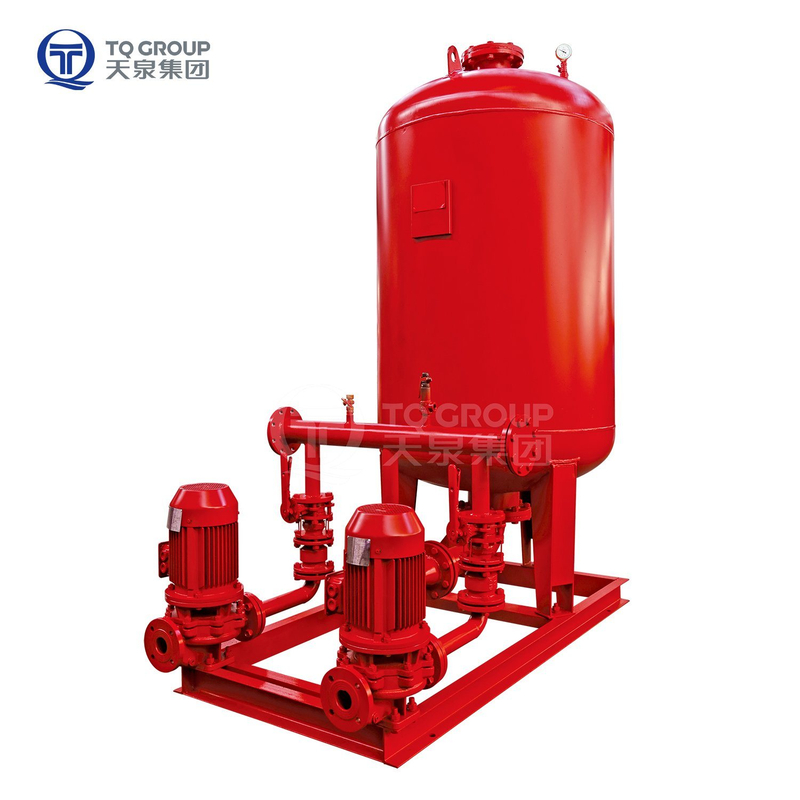

XBD-TQL Single Stage Vertical Fire Pump

(1) The XBD-L series features a vertical single-stage single suction design with a closed coupled structure, suitable for fixed firefighting applications. The pump impeller is directly mounted on the extended shaft of the motor. Both the pump suction inlet and discharge outlet are flanged connections, having the same nominal diameter. The pump does not have bearings; both axial and radial forces are supported by the motor's bearings.

(2) This company has developed this new product according to the needs of domestic industrial and mining enterprises, construction projects, and high-rise building firefighting, strictly following the international standard ISO2858 and the latest GB6245-2006 "Fire Pump" standards. The product has been sealed sampled by the National Firefighting Equipment Quality Supervision and Inspection Center, and its quality performance fully complies with the requirements of the GB6245-2006 national standard. Its performance reaches the advanced level of similar domestic products.

Application

(1) The XBD-L series pumps can transport liquids below 80°C that do not contain solid particles or are physically and chemically similar to clear water, as well as slightly corrosive liquids.
(2) These pumps are mainly used for the water supply of fixed firefighting systems in industrial and civil buildings (fire hydrant extinguishing systems, automatic sprinkler extinguishing systems, and water spray extinguishing systems, etc.).
(3) These products can be used not only in independent firefighting water supply systems but also in combined firefighting and domestic (production) water supply systems, as well as for building, municipal, industrial and mining water drainage, and boiler feed water among other applications.

Quantity:
Availability:





Inquiry Add to Basket

Model:
XBD-TQL

Product Description

Product Features

Product Structure

Others

The XBD-TQL Single Stage Vertical Fire Pump by TQPUMPS is a powerful and efficient firefighting solution. Its compact vertical design saves space while delivering impressive performance. With a max flow rate of 360m³/h and a max head of 200m, it can handle demanding fire scenarios.

The pump features a robust single-stage structure and a reliable mechanical seal. It is powered by an IE3 efficiency motor with options up to 200kW. The XBD-TQL is built to last, with a max working pressure of PN16/PN25 and an IP55 protection rating. Customization and online after-sales service are available to meet your specific needs.

Technical Parameters

Parameter	Value
Max Flow Rate	360m³/h
Voltage	380V
Max Head	200 m
Frequency	50HZ
Speed	1450/2900RPM
Max Motor Power	200kW
Structure	Single Stage Vertical
Installation Type	B5
Outlet Diameter	DN25-DN300
Efficiency Class	IE3
Seal Type	Mechanical Seal
Insulation Class	F
Max Working Pressure	PN16/PN25
Protection Grade	IP55
Liquid Temperature	80°C
Cooling Method	TEFC
Thermal Protection	Optional
Customization	Available
After-sales Service	Online Service

Hydraulic Performance

Model	Rated Flow (L/s)	Rated Head（MPa)	Speed(r/min)	Power(kW)
XBD3.0/5G-L	5	0.30	2900	5.5
XBD4.5/5G-L	5	0.45	2900	5.5
XBD7.0/5G-L	5	0.70	2900	11
XBD8.0/5G-L	5	0.80	2900	15
XBD9.0/5G-L	5	0.90	2900	18.5
XBD10.7/5G-L	5	1.07	2900	22
XBD12.5/5G-L	5	1.25	2900	30
XBD3.0/10G-L	10	0.30	2900	7.5
XBD4.0/10G-L	10	0.40	2900	7.5
XBD5.0/10G-L	10	0.50	2900	15
XBD6.0/10G-L	10	0.60	2900	15
XBD7.0/10G-L	10	0.70	2900	18.5
XBD8.0/10G-L	10	0.80	2900	22
XBD8.5/10G-L	10	0.85	2900	22
XBD9.0/10G-L	10	0.90	2900	22
XBD10.0/10G-L	10	1.00	2900	30
XBD10.7/10G-L	10	1.07	2900	30
XBD12.0/10G-L	10	1.20	2900	37
XBD12.5/10G-L	10	1.25	2900	37
XBD13.0/10G-L	10	1.30	2900	37
XBD3.0/15G-L	15	0.30	2900	7.5
XBD4.0/15G-L	15	0.40	2900	11
XBD5.0/15G-L	15	0.50	2900	15
XBD6.0/15G-L	15	0.60	2900	15
XBD7.0/15G-L	15	0.70	2900	18.5
XBD8.0/15G-L	15	0.80	2900	22
XBD9.0/15G-L	15	0.90	2900	30
XBD10.7/15G-L	15	1.07	2900	30
XBD11.0/15G-L	15	1.10	2900	30
XBD12.0/15G-L	15	1.20	2900	30
XBD12.5/15G-L	15	1.25	2900	37
XBD13.0/15G-L	15	1.30	2900	37
XBD14.0/15G-L	15	1.40	2900	45
XBD3.0/20G-L	20	0.30	2900	15
XBD4.0/20G-L	20	0.40	2900	15
XBD4.5/20G-L	20	0.45	2900	18.5
XBD5.3/20G-L	20	0.53	2900	22
XBD6.0/20G-L	20	0.60	2900	22
XBD7.0/20G-L	20	0.70	2900	30
XBD8.0/20G-L	20	0.80	2900	37
XBD9.0/20G-L	20	0.90	2900	45
XBD11.0/20G-L	20	1.10	2900	45
XBD12.0/20G-L	20	1.20	2900	55
XBD12.5/20G-L	20	1.25	2900	75
XBD3.0/25G-L	25	0.30	2900	15
XBD4.0/25G-L	25	0.40	2900	15
XBD4.5/25G-L	25	0.45	2900	18.5
XBD5.0/25G-L	25	0.50	2900	22
XBD6.1/25G-125L	25	0.61	2900	30
XBD7.0/25G-L	25	0.70	2900	30
XBD7.8/25G-L	25	0.78	2900	45
XBD9.0/25G-L	25	0.90	2900	45
XBD10.0/25G-L	25	1.00	2900	45
XBD10.5/25G-L	25	1.05	2900	55
XBD11.5/25G-L	25	1.15	2900	55
XBD12.5/25G-L	25	1.25	2900	75
XBD13.0/25G-L	25	0.30	2900	75
XBD15.0/25G-L	25	0.50	2900	110
XBD3.0/30G-L	30	0.30	2900	18.5
XBD4.0/30G-L	30	0.40	2900	18.5
XBD5.4/30G-L	30	0.54	2900	37
XBD6.0/30G-L	30	0.60	2900	30
XBD10.0/30G-L	30	1.00	2900	45
XBD11.0/30G-L	30	1.10	2900	75
XBD12.0/30G-L	30	1.20	2900	75
XBD12.5/30G-L	30	1.25	2900	90
XBD14.0/30G-L	30	1.40	2900	90
XBD15.0/30G-L	30	1.50	2900	110
XBD3.0/35G-L	35	0.30	2900	22
XBD4.0/35G-L	35	0.40	2900	22
XBD5.0/35G-L	35	0.50	2900	37
XBD6.0/35G-L	35	0.60	2900	37
XBD7.0/35G-L	35	0.70	2900	45
XBD8.0/35G-L	35	0.80	2900	45
XBD9.0/35G-L	35	0.90	2900	75
XBD10.0/35G-L	35	1.00	2900	75
XBD12.0/35G-L	35	1.20	2900	75
XBD13.0/35G-L	35	1.30	2900	75
XBD14.0/35G-L	35	1.40	2900	90
XBD15.0/35G-L	35	1.50	2900	110
XBD3.0/40G-L	40	0.30	2900	30
XBD4.0/40G-L	40	0.40	2900	30
XBD5.0/40G-L	40	0.50	2900	45
XBD7.0/40G-L	40	0.70	2900	55
XBD10.0/40G-1	40	1.00	2900	75
XBD11.0/40G-L	40	0.10	2900	75
XBD12.0/40G-L	40	1.20	2900	90
XBD13.0/40G-L	40	1.30	2900	90
XBD6.0/45G-L	45	0.60	2900	37
XBD7.0/45G-L	45	0.70	2900	45
XBD8.0/45G-L	45	0.80	2900	55
XBD9.0/45G-L	45	0.90	2900	75
XBD10.0/45G-L	45	1.00	2900	75
XBD11.0/45G-L	45	1.10	2900	75
XBD8.0/50G-L	50	0.80	2900	75
XBD9.0/50G-L	50	0.90	2900	75
XBD10.0/50G-L	50	1.00	2900	90
XBD11.0/50G-L	50	0.10	2900	90
XBD10.0/60G-L	60	1.00	2900	110
XBD11.0/60G-L	60	1.10	2900	132
XBD10.5/70G-L	70	1.05	2900	132
XBD5.0/5G-TQL	5	0.50	2900	5.5
XBD5.0/5G-TQL	5	0.50	2900	5.5
XBD6.0/5G-TQL	5	0.60	2900	7.5
XBD10.5/20G-TQL	20	1.05	2900	45
XBD10.0/15G-TQL	15	1.00	2900	30
XBD15.0/15G-TQL	15	1.50	2900	45
XBD13.0/20G-TQL	20	1.30	2900	55
XBD14.0/20G-TQL	20	1.40	2900	75
XBD15.0/20G-TQL	20	1.50	2900	75
XBD15.5/20G-TQL	20	1.55	2900	75
XBD7.5/25G-TQL	25	0.75	2900	37
XBD14.0/25G-TQL	25	1.40	2900	75
XBD15.0/25G-TQL	25	1.50	2900	90
XBD15.5/25G-TQL	25	1.55	2900	90
XBD4.5/30G-TQL	30	0.45	2900	22
XBD5.0/30G-TQL	30	0.50	2900	30
XBD7.0/30G-TQL	30	0.70	2900	30
XBD8.0/30G-TQL	30	0.80	2900	37
XBD9.0/30G-TQL	30	0.90	2900	45
XBD11.0/30G-TQL	30	1.10	2900	55
XBD15.5/30G-TQL	30	1.55	2900	110
XBD12.5/35G-TQL	35	1.25	2900	75
XBD4.5/40G-TQL	40	0.45	2900	30
XBD6.0/40G-TQL	40	0.60	2900	37
XBD8.0/40G-TQL	40	0.80	2900	45
XBD9.0/40G-TQL	40	0.90	2900	55
XBD14.0/40G-TQL	40	1.40	2900	110
XBD15.0/40G-TQL	40	1.50	2900	110
XBD15.5/40G-TQL	40	1.55	2900	132
XBD3.2/45G-TQL	45	0.32	2900	30
XBD5.0/45G-TQL	45	0.50	2900	37
XBD12.0/45G-TQL	45	1.20	2900	110
XBD13.0/45G-TQL	45	1.30	2900	110
XBD14.0/45G-TQL	45	1.40	2900	132
XBD15.0/45G-TQL	45	1.50	2900	132
XBD4.0/50G-TQL	50	0.40	2900	30
XBD5.0/50G-TQL	50	0.50	2900	45
XBD6.0/50G-TQL	50	0.60	2900	55
XBD7.0/50G-TQL	50	0.70	2900	55
XBD8.0/50G-TQL	50	0.80	2900	75
XBD9.0/50G-TQL	50	0.90	2900	75
XBD10.0/50G-TQL	50	1.00	2900	90
XBD11.0/50G-TQL	50	1.10	2900	90
XBD12.0/50G-TQL	50	1.20	2900	110
XBD13.0/50G-TQL	50	1.30	2900	110
XBD14.0/50G-TQL	50	1.40	2900	132
XBD15.0/50G-TQL	50	1.50	2900	160
XBD4.0/55G-TQL	55	0.40	2900	37
XBD5.0/55G-TQL	55	0.50	2900	45
XBD6.0/55G-TQL	55	0.60	2900	55
XBD8.0/55G-TQL	55	0.80	2900	75
XBD9.0/55G-TQL	55	0.90	2900	75
XBD10.0/55G-TQL	55	1.00	2900	90
XBD11.0/55G-TQL	55	1.10	2900	110
XBD12.0/55G-TQL	55	1.20	2900	110
XBD13.0/55G-TQL	55	1.30	2900	132
XBD14.0/55G-TQL	55	1.40	2900	132
XBD15.0/55G-TQL	55	1.50	2900	160
XBD7.0/60G-TQL	60	0.70	2900	75
XBD8.0/60G-TQL	60	0.80	2900	90
XBD9.0/60G-TQL	60	0.90	2900	110
XBD12.0/60G-TQL	60	1.20	2900	132
XBD13.0/60G-TQL	60	1.30	2900	160
XBD14.0/60G-TQL	60	1.40	2900	160
XBD15.0/60G-TQL	60	1.50	2900	185
XBD15.5/60G-TQL	60	1.55	2900	185
XBD4.0/65G-TQL	65	0.40	2900	45
XBD5.0/65G-TQL	65	0.50	2900	55
XBD6.0/65G-TQL	65	0.60	2900	75
XBD7.0/65G-TQL	65	0.70	2900	90
XBD8.0/65G-TQL	65	0.80	2900	110
XBD4.0/70G-TQL	70	0.40	2900	55
XBD5.0/70G-TQL	70	0.50	2900	75
XBD6.0/70G-TQL	70	0.60	2900	75
XBD7.0/70G-TQL	70	0.70	2900	90
XBD8.0/70G-TQL	70	0.80	2900	110
XBD9.0/70G-TQL	70	0.90	2900	132
XBD10.0/70G-TQL	70	1.00	2900	132
XBD11.0/70G-TQL	70	1.10	2900	60
XBD12.0/70G-TQL	70	1.20	2900	60
XBD13.0/70G-TQL	70	1.30	2900	185
XBD4.0/75G-TQL	75	0.40	2900	55
XBD5.0/75G-TQL	75	0.50	2900	75
XBD6.0/75G-TQL	75	0.60	2900	90
XBD7.0/75G-TQL	75	0.70	2900	110
XBD8.0/75G-TQL	75	0.80	2900	110
XBD9.0/75G-TQL	75	0.90	2900	32
XBD10.0/75G-TQL	75	1.00	2900	160
XBD11.0/75G-TQL	75	1.10	2900	160
XBD12.0/75G-TQL	75	1.20	2900	185
XBD13.0/75G-TQL	75	1.30	2900	200
XBD4.0/80G-TQL	80	0.40	2900	55
XBD5.0/80G-TQL	80	0.50	2900	75
XBD6.0/80G-TQL	80	0.60	2900	90
XBD7.0/80G-TQL	80	0.70	2900	110
XBD8.0/80G-TQL	80	0.80	2900	110
XBD9.0/80G-TQL	80	0.90	2900	132
XBD10.0/80G-TQL	80	1.00	2900	160
XBD11.0/80G-TQL	80	1.10	2900	160
XBD12.0/80G-TQL	80	1.20	2900	185
XBD12.5/80G-TQL	80	1.25	2900	200
XBD3.0/1W-L	1	0.30	2900	1.1
XBD4.0/1W-L	1	0.40	2900	2.2
XBD5.0/1W-L	1	50.00	2900	3
XBD3.0/1.5W-L	1.5	30.00	2900	1.5
XBD4.0/1.5W-	1.5	0.40	2900	2.2
XBD5.0/1.5W-L	1.5	50.00	2900	4
XBD6.071.5W-L	1.5	60.00	2900	4
XBD7.0/1.5W-L	1.5	70.00	2900	5.5
XBD7.5/1.5W-L	1.5	75.00	2900	7.5
XBD3.0/2W-L	2	0.30	2900	2.2
XBD3.5/2W-L	2	35.00	2900	3
XBD4.0/2W-L	2	40.00	2900	4
XBD5.0/2W-L	2	50.00	2900	5.5
XBD6.0/2W-L	2	60.00	2900	7.5
XBD7.0/2W-L	2	0.70	2900	7.5
XBD7.5/2W-L	2	75.00	2900	11
XBD3.0/2.5W-L	2.5	30.00	2900	3
XBD4.0/2.5W-L	2.5	40.00	2900	4
XBD5.0/2.5W-L	2.5	50.00	2900	5.5
XBD6.0/2.5W-L	2.5	60.00	2900	7.5
XBD7.0/2.5W-L	2.5	70.00	2900	7.5
XBD7.5/2.5W-L	2.5	75.00	2900	11
XBD3.0/3W-L	3	0.30	2900	3
XBD4.0/3W-L	3	40.00	2900	4
XBD5.0/3W-L	3	50.00	2900	5.5
XBD6.0/3W-L	3	0.60	2900	7.5
XBD7.0/3W-L	3	0.70	2900	7.5
XBD7.5/3W-L	3	0.75	2900	11
XBD3.0/3.5W-L	3.5	0.30	2900	3
XBD3.4/3.5W-L	3.5	0.34	2900	3
XBD4.0/3.5W-L	3.5	0.40	2900	4
XBD5.0/3.5W-L	3.5	0.50	2900	7.5
XBD6.0/3.5W-L	3.5	0.60	2900	7.5
XBD7.0/3.5W-L	3.5	0.70	2900	7.5
XBD7.5/3.5W-L	3.5	0.75	2900	11
XBD3.0/4.0W-L	4	0.30	2900	3
XBD4.0/4.0W-L	4	0.40	2900	4
XBD5.0/4.0W-L	4	0.50	2900	7.5
XBD5.5/4.0W-L	4	0.55	2900	7.5
XBD6.074.0W-L	4	0.60	2900	7.5
XBD7.0/4.0W-L	4	0.70	2900	11
XBD7.5/4.0W-L	4	0.75	2900	11
XBD3.0/4.5W-L	4.5	0.30	2900	3
XBD4.0/4.5W-L	4.5	0.40	2900	4
XBD5.0/4.5W-L	4.5	0.50	2900	7.5
XBD5.5/4.5W-L	4.5	0.55	2900	7.5
XBD6.0/4.5W-L	4.5	0.60	2900	7.5
XBD6.574.5W-L	4.5	0.65	2900	7.5
XBD7.0/4.5W-L	4.5	0.70	2900	11
XBD7.5/4.5W-L	4.5	0.75	2900	11
XBD3.0/45G-L	45	0.30	1450	37
XBD5.0/50G-L	50	0.50	1450	55
XBD7.0/50G-L	50	0.70	1450	75
XBD8.0/50G-L	50	0.80	1450	110
XBD9.0/50G-L	50	0.90	1450	110
XBD3.0/60G-L	60	0.30	1450	45
XBD5.0/60G-L	60	0.50	1450	55
XBD6.0/60G-L	60	0.60	1450	75
XBD7.0/60G-L	60	0.70	1450	90
XBD8.0/60G-L	60	0.80	1450	132
XBD3.0/70G-L	70	0.30	1450	55
XBD5.0/70G-L	70	0.50	1450	75
XBD6.3/70G-L	70	0.63	1450	90
XBD7.0/70G-L	70	0.70	1450	110
XBD8.0/70G-L	70	0.80	1450	132
XBD3.0/80G-L	80	0.30	1450	55
XBD5.0/80G-L	80	0.50	1450	75
XBD6.0/80G-L	80	0.60	1450	90
XBD7.0/80G-L	80	0.70	1450	110
XBD8.0/80G-L	80	0.80	1450	132
XBD5.0/50G-TQLD	50	0.50	1450	45
XBD6.0/50G-TQLD	50	0.60	1450	55
XBD8.0/50G-TQLD	50	0.80	1450	90
XBD8.0/60G-TQLD	60	0.80	1450	110
XBD4.0/70G-TQLD	70	0.40	1450	55
XBD5.0/70G-TQLD	70	0.50	1450	75
XBD6.0/70G-TQLD	70	0.60	1450	90
XBD7.0/70G-TQLD	70	0.70	1450	110
XBD8.0/70G-TQLD	70	0.80	1450	110
XBD4.0/75G-TQLD	75	0.40	1450	55
XBD5.0/75G-TQLD	75	0.50	1450	75
XBD6.0/75G-TQLD	75	0.60	1450	90
XBD7.0/75G-TQLD	75	0.70	1450	10
XBD8.0/75G-TQLD	75	0.80	1450	10
XBD8.5/75G-TQLD	75	0.85	1450	32
XBD4.0/80G-TQLD	80	0.40	1450	55
XBD5.0/80G-TQLD	80	0.50	1450	75
XBD6.0/80G-TQLD	80	0.60	1450	75
XBD7.0/80G-TQLD	80	0.70	1450	90
XBD8.0/80G-TQLD	80	0.80	1450	132
XBD8.5/80G-TQLD	80	0.85	1450	132
XBD4.0/85G-TQLD	85	0.40	1450	55
XBD5.0/85G-TQLD	85	0.50	1450	75
XBD6.0/85G-TQLD	85	0.60	1450	90
XBD7.0/85G-TQLD	85	0.70	1450	10
XBD8.0/85G-TQLD	85	0.80	1450	32
XBD8.5/85G-TQLD	85	0.85	1450	132
XBD5.0/90G-TQLD	90	0.50	1450	75
XBD6.0/90G-TQLD	90	0.60	1450	90
XBD7.0/90G-TQLD	90	0.70	1450	110
XBD8.0/90G-TQLD	90	0.80	1450	132
XBD8.4/90G-TQLD	90	0.84	1450	132
XBD8.5/90G-TQLD	90	0.85	1450	132
XBD5.0/95G-TQLD	95	0.50	1450	75
XBD6.0/95G-TQLD	95	0.60	1450	90
XBD7.0/95G-TQLD	95	0.70	1450	110
XBD8.0/95G-TQLD	95	0.80	1450	132
XBD8.5/95G-TQLD	95	0.85	1450	132
XBD6.0/100G-TQLD	100	0.60	1450	90
BD7.07100G-TQLD	100	0.70	1450	110
XBD8.0/100G-TQLD	100	0.80	1450	132
XBD5.0/110G-TQLD	110	0.50	1450	110
XBD6.0/110G-TQLD	110	0.60	1450	110
XBD7.0/110G-TQLD	110	0.70	450	132
XBD8.0/110G-TQLD	110	0.80	1450	132
XBD5.0/120G-TQLD	120	0.50	450	110
XBD6.0/120G-TQLD	120	0.60	1450	132
XBD7.0/120G-TQLD	120	70.00	1450	160
XBD8.0/120G-TQLD	120	0.80	50	200
XBD8.5/120G-TQLD	120	0.85	1450	200

Key Features of XBD-TQL Single Stage Vertical Fire Pump

Single Stage Vertical Fire Pump

Integrated Pump and Motor Design

Ensures excellent concentricity and stable operation
Compact structure saves valuable space in your facility

Top-Pull Construction

Simplifies maintenance by eliminating the need to dismantle piping connections
Reduces downtime and gets your fire pump back in service quickly

High-Quality Materials

Stainless steel impeller and shaft for durability and corrosion resistance
Built to withstand the demands of firefighting applications

Versatile Performance Range

Ideal for use as a pressure stabilizer or for high-flow firefighting water supply
Adapts to various fire protection scenarios, from high-rise buildings to industrial parks

Energy-Efficient Operation

Optimized design minimizes power consumption and lowers running costs
Helps you meet sustainability goals without compromising on performance

Easy Installation and Maintenance

Streamlined design facilitates quick and straightforward setup
User-friendly maintenance features for hassle-free servicing

Reliable and Low-Noise Running

Robust construction ensures consistent, dependable operation
Smooth running with minimal noise levels for a pleasant working environment

Wide Range of Applications

Suitable for high-rise building fire systems and large commercial complexes
Ideal for industrial park fire safety and urban main pipeline pressurization
Adaptable for use on ships and offshore platforms

Whether you need a reliable single stage fire pump for a high-rise building or a compact vertical fire pump for an industrial facility, the XBD-TQL has you covered. With its efficient design, easy maintenance, and wide range of applications, this centrifugal fire pump is the perfect choice for your firefighting needs.

Model Meaning Shanghai-Tianquan-Pump-Group-Co-Ltd- (5)

XBD-TQL Single Stage Vertical Fire Pump Model Number Explanation:

XB Series Designation:

Represents professional fire-fighting pump series Manufactured by leading industrial pump manufacturer with 30 years experience

D Motor Type:

Electric motor driven configuration Tested with current and performance validation

3.0 Flow Rate:

Indicates rated flow capacity of 3.0L/S Tested in national B-level comprehensive testing center

40 Pressure Rating:

Represents 4.0MPa rated pressure Each unit undergoes strict hydraulic testing

G/W Application:

G indicates water supply application W represents pressure stabilization system Optimized using CFD fluid dynamics analysis software

TQL Structure Type:

Vertical single-stage centrifugal pump design Manufactured in state-of-the-art facilities covering 550,000 square meters

Quality Assurance:

TUV, CE, ROHS, and ISO 9001 certified
Each pump undergoes performance, leakage, and current testing
Meets ISO 9906 3B or 2B grade standards

Product Structure

XBD-TQL

XBD-TQL Single Stage Vertical Fire Pump Components Analysis:

1、Motor

YE3 V1 series motor ensures reliable performance
Energy-efficient design meets international standards

2、Pump Cover

Made of HT200 cast iron for structural stability
CNC precision machining ensures accuracy

3、Pump Shaft

SS304 stainless steel construction
Enhanced corrosion resistance and durability

4、Mechanical Seal

Single End SIC-C/EPDM configuration
Tested for leakage prevention

5、Pump Body

HT200 material construction
CFD-optimized hydraulic design

6、Impeller

SS304 standard material with bronze option
Dynamic balance tested for stability

Quality Assurance:

TUV and CE certified components
ISO 9001 quality management system compliance
Complete performance testing for each unit

Manufacturing Capability:

Advanced CNC machining equipment
Professional testing center verification
Annual production exceeds 150,000 units

Model selection instructions

After sales1

Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.

If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).

If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.

FAQs

Q1: What is the maximum flow rate of the XBD-TQL single stage fire pump?

A1: The XBD-TQL single stage vertical fire pump offers a maximum flow rate of 360m³/h.

Q2: Can I customize the XBD-TQL fire pump to suit my specific requirements?

A2: Yes, we provide customization options to tailor the pump to your unique needs.

Q3: How does the top-pull construction benefit maintenance?

A3: The top-pull design allows for easy maintenance without dismantling the pump's piping connections.

Q4: Is the XBD-TQL fire pump suitable for use in high-rise buildings?

A4: Absolutely. The XBD-TQL is ideal for firefighting systems in high-rise structures.

Q5: What is the maximum motor power available for the XBD-TQL pump?

A5: The XBD-TQL can be equipped with motors up to 200kW to meet your power needs.

Q6: How does the XBD-TQL pump contribute to energy efficiency?

A6: The optimized design of the XBD-TQL minimizes power consumption, reducing operating costs.

Q7: What is the maximum working pressure of the XBD-TQL fire pump?

A7: The XBD-TQL can handle a maximum working pressure of PN16/PN25, ensuring reliable performance.

Q8: Is online after-sales service available for the XBD-TQL pump?

A8: Yes, we offer online after-sales support to assist you with any questions or concerns.

Product Description

Product Features

Product Structure

Others

Related Products

XBD-DW Horizontal Multistage Fire Pump

XBD-LG Vertical Multistage Fire Pump

Product Detail

XBD-TQL Single Stage Vertical Fire Pump

Technical Parameters

Technical Parameters

Key Features of XBD-TQL Single Stage Vertical Fire Pump

XBD-TQL Single Stage Vertical Fire Pump Components Analysis:

FAQs

Related Products

Quick Links

Support

Product Category

Contact Us
