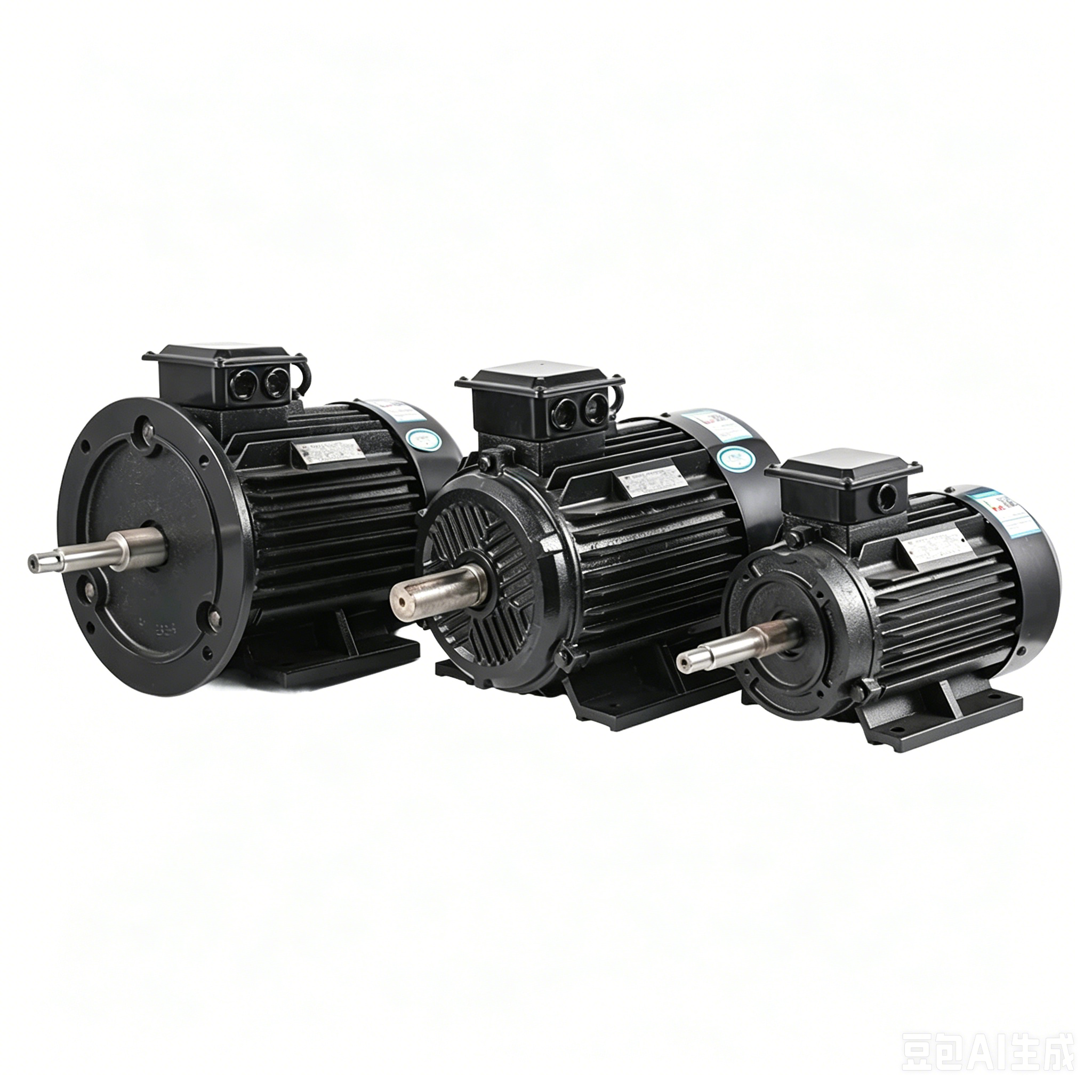

YVFP Variable frequency Three phase Asynchronous motor

Chaoda YVF2 series motor from is a three-phase asynchronous motor that can be powered by a variable frequency drive, a typical application of motor energy conservation. The motor operates at constant torque from 5-50Hz and at constant power from 50-100Hz. It has an IP55 protection rating, IC416 cooling method, and installation method compliant with IEC and DIN standards. The motor shaft undergoes special insulation treatment to make it suitable for VFD power supply systems without causing motor overheating.The rated voltage and frequency can also be determined according to user requirements.

Application

Motor can be widely used to drive various general mechanical equipment such as fans, water pumps, machine tools, compressors and transport machinery, and can also used in other places with harsh environments such as petroleum, chemical, steel and mining.

Quantity:
Availability:





Inquiry Add to Basket Download

Model:
YVFP

Product Features

Product Dimension

Product Performance

Others

Product Features

Energy-saving, wide range of speed regulation, low noise, and small vibration output.
Characteristic of low-speed constant torque output, and high-speed constant power output.

Reliable quality with a designed 30 years service life.

Two year warranty.

Technical Parameters

Rotor Structure	Squirrel-Cage	Voltage	380V/Customized
Motor Frame Material	Casting Iron	Frequency Range	5-100Hz
Number of Poles	2/4/6/8/10	Max Motor Power	315KW
Casing Protection	Closed Type	Mounting type	B5 B35 B3 V1
Center Height	80-355	Efficiency Level	IE3
Safety Factor	1.1	Insulation Class	F
Stator Winding	Copper Wire	Protection Class	IP55
Starting Mode	Variable Frequency Starting	Cooling Method	AIR-COOLED
Product Certificate	CE	Thermal Protection

Product Dimension

YE3-B3

B3-Frame	Poles	Installation Dimension									Outline Dimension
		A	B	C	D	E	F	G	H	K	AA	BB	HA	AB	AC	AD	HD	L
80M	2 , 4 , 6 , 8	125	100	50	19	40	6	15 . 5	80	10	32	135	10	160	165	145	225	365
90S	2 , 4 , 6 , 8	140	100	56	24	50	8	20	90	10	34	145	12	180	180	165	255	390
90L			125									170						415
100L	2 , 4 , 6 , 8	160	140	63	28	60	8	24	100	12	39	186	14	200	205	175	275	465
112M	2 , 4 , 6 , 8	190	140	70	28	60	8	24	112	12	45	200	14	230	225	190	300	490
132S	2 , 4 , 6 , 8	216	140	89	38	80	10	33	132	12	55	190	18	265	270	220	350	600
132M			178									230						640
160M	2 , 4 , 6 , 8	254	210	108	42	110	12	37	160	15	65	260	20	315	320	260	420	715
160L			254									304						755
180M	2 , 4 , 6 , 8	279	241	121	48	110	14	42 . 5	180	15	70	311	22	355	360	265	445	805
180L			279									349						845
200L	2 , 4 , 6 , 8	318	305	133	55	110	16	49	200	19	74	379	26	395	400	305	505	875
225S	4 8	356	286	149	60	140	18	53	225	19	78	375	28	435	450	325	550	900
225M	2		311		55	110	16	49				400						895
	4 , 6 , 8				60	140	1	53										925
250M	2	406	349	168	60	140	18	53	250	24	80	445	30	490	620	380	630	1005
	4 , 6 , 8				65			58
280S	2	457	368	190	65	140	18	58	280	24	90	485	35	545	550	395	675	1085
	4 , 6 , 8				75		20	67 . 5
280M	2		419		65		18	58				536						1136
	4 , 6 , 8				75		20	67 . 5
315S	2	508	406	216	65	140	18	58	315	28	120	570	45	635	630	540	855	1260
	4 , 6 , 8				80	170	22	71										1300
315M	2		457		65	140	18	58				610						1295
	4 , 6 , 8 , 1 0				80	170	22	71										1325
315L	2		508		65	140	18	58				680						1370
	4 , 6 , 8 , 1 0				80	170	22	71										1400
355M	2	610	560	254	75	140	20	67 . 5	355	28	130	690	52	735	715	645	1000	1470
	4 , 6 , 8 , 1 0				95	170	25	86										1500
355L/L1 355L2/L3	2		630		75	140	20	67 . 5				750						1580
	4 , 6 , 8 , 1 0				95	170	25	86										1610
	2				80	170	22	71										1610
	4 , 6 , 8 , 1 0				110	210	28	100										1 650

YE3-B5

B5-Frame	Poles	Installation Dimension										Outline Dimension

		D	E	F	G	M	N	P	R	S	T	AC	AD	HF	L
80M	2 , 4 , 6 , 8	19	40	6	15 . 5	165	130	200	0	4 - Φ1 2	3 . 5	165	145	245	305
90S	2 , 4 , 6 , 8	24	50	8	20	165	130	200	0	4 - Φ1 2	3 . 5	180	165	265	390
90L															415
100L	2 , 4 , 6 , 8	28	60	8	24	215	180	250	0	4 - Φ1 5	4	205	175	300	465
112M	2 , 4 , 6 , 8	28	60	8	24	215	180	250	0	4 - Φ1 5	4	225	190	315	490
132S	2 , 4 , 6 , 8	38	80	10	33	265	230	300	0	4 - Φ1 5	4	270	220	370	600
132M															640
160M	2 , 4 , 6 , 8	42	110	12	37	300	250	350	0	4 - Φ1 9	5	320	260	435	715
160L															755
180M	2 , 4 , 6 , 8	48	110	14	42 . 5	300	250	350	0	4 - Φ1 9	5	360	265	440	808
180L															845
200L	2 , 4 , 6 , 8	55	110	16	49	350	300	400	0	4 - Φ1 9	5	400	305	505	875
225S	4 , 8	60	140	18	53	400	350	450	0	8 - Φ1 9	5	450	325	550	900
225M	2	55	110	16	49										895
	4 , 6 , 8	60	140	18	53										925
250M	2	60	140	18	53	500	450	550	0	8 - Φ1 9	5	510	380	655	1005
	4 , 6 , 8	65			58
280S	2	65	140	20 18 20	58	500	450	550	0	8 - Φ1 9	5	550	395	670	1085
	4 , 6 , 8	75			67 . 5
280M	2	65			58										1135
	4 , 6 , 8	75			67 . 5

YE3-B35

B35-Frame	Poles	Installation Dimension															Outline Dimension
		A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AA	BB	HA	AB	AC	AD	HD	L
80M	2 , 4 , 6 , 8	125	100	50	19	40	6	15 . 5	80	10	165	1300	200	0	4 - Φ12	3 . 5	32	135	10	160	165	145	225	365
90S	2 , 4 , 6 , 8	140	100	56	24	50	8	20	90	10	165	130	200	0	4 - Φ12	3 . 5	34	145	12	180	180	165	255	390
90L	2 , 4 , 6 , 8		125																					415
100L	2 , 4 , 6 , 8	160	140	63	28	60	8	24	100	12	215	180	250	0	4 - Φ15	4	39	186	14	200	205	175	275	465
112M	2 , 4 , 6 , 8	190	140	70	28	60	8	24	112	12	215	180	250	0	4 - Φ15	4	45	200	14	230	225	190	300	490
132S	2 , 4 , 6 , 8	216	140	89	38	80	10	33	132	12	265	230	300	0	4 - Φ15	4	55	190	18	265	270	220	350	600
132M			178																					640
160M	2 , 4 , 6 , 8	254	210	108	42	110	12	37	160	15	300	250	350	0	4 - Φ19	5	65	260 304	20	315	320	260	420	715
160L			254																					755
180M	2 , 4 , 6 , 8	279	241	121	48	112	14	42 . 5	180	15	300	250	350	0	4 - Φ19	5	70	311	22	355	360	265	445	805
180L			279																					845
200L	2 , 4 , 6 , 8	318	305	133	55	132	16	49	200	19	350	300	400	0	4 - Φ19	5	74	379	26	395	400	305	505	875
225S	4 , 8	356	286	149	60	140	18	53	225	19	400	350	450	0	8 - Φ19	5	78	375	28	435	450	325	550	900
225M	2		311		55	110	16	49										400						895
	2 , 4 , 6 , 8				60	250	18	53																925
250M	2	406	349	168	60	140	18	53	250	24	500	450	550	0	8 - Φ19	5	80	445	30	490	510	380	630	1005
	2 , 4 , 6 , 8				65			58
280S	2	457	368	190	65	140	18	58	280	24	500	450	550	0	8 - Φ19	5	90	485	35	545	550	395	675	1085
	2 , 4 , 6 , 8				75		20	67 . 5
280M	2		419		65		18	58										536						1135
	2 , 4 , 6 , 8				75		20	67 . 5
315S	2	508	406	216	65	140	18	58	315	28	600	550	660	0	8 - Φ24	6	120	570	45	635	630	540	855	1260
	2 , 4 , 6 8 1 0				80	170	22	71																1300
315M	2		457		65	140	18	58										610						1295
	2 , 4 , 6 , 8 , 1 0				80	170	22	71																1325
315L	2		508		65	140	18	58										680						1370
	2 , 4 , 6 , 8 , 1 0				80	170	22	71																1400
355M	2	610	560	254	75	140	20	67 . 5	355	28	740	680	800	0	8 - Φ24	6	130	690	52	735	715	645	1000	1470
	2 , 4 , 6 , 8 , 1 0				95	170	25	86																1500
355L/L1	2		630		75	140	20	67 . 5										750						1580
	2 , 4 , 6 , 8 , 1 0				95	170	25	86																1610
355L/L2	2				80	170	22	71																1610
	2 , 4 , 6 , 8 , 1 0				110	210	28	100																1650

Product Performance

Type	Rated Output	Current	Speed	Efficiency	Power Factor	Rated Torque	Sound	Constant torque speed range	Constant power speed range
Type	kw	A	r/min	Eff. %	P . F	N . m	dB(A)
Constant Speed 3000 r/min
YVF2 - 80M1 - 2	0 . 75	1 . 90	2848	72 . 1	0 . 83	2 . 4	79	5 - 50	50 - 1 00
YVF2 - 80M2 - 2	1 . 1	2 . 68	2864	75 . 0	0 . 83	3 . 5	79
YVF2 - 90S- 2	1 . 5	3 . 51	2848	77 . 2	0 . 84	4 . 8	84
YVF2 - 90L- 2	2 . 2	4 . 93	2864	79 . 7	0 . 85	7 . 0	84
YVF2 - 100L- 2	3	6 . 43	2878	81 . 5	0 . 87	9 . 5	91
YVF2 - 112M - 2	4	8 . 31	2871	83 . 1	0 . 88	12 . 7	93
YVF2 - 132S1 - 2	5 . 5	11 . 2	2941	84 . 7	0 . 88	17 . 5	96
YVF2 - 132S2 - 2	7 . 5	14 . 9	2937	86 . 0	0 . 89	23 . 9	96
YVF2 - 160M1 - 2	11	21 . 4	2941	87 . 6	0 . 89	35 . 0	98
YVF2 - 160M2 - 2	15	28 . 9	2943	88 . 7	0 . 89	47 . 7	98
YVF2 - 160L - 2	18 . 5	35 . 4	2940	89 . 3	0 . 89	58 . 9	98
YVF2 - 180M - 2	22	41 . 8	2941	89 . 9	0 . 89	70 . 0	100
YVF2 - 200L1 - 2	30	56 . 5	2940	90 . 7	0 . 89	95 . 5	101
YVF2 - 200L2 - 2	37	69 . 3	2940	91 . 2	0 . 89	117 . 8	101
YVF2 - 225M - 2	45	83 . 8	2941	91 . 7	0 . 89	143 . 2	103
YVF2 - 250M - 2	55	101 . 9	2940	92 . 1	0 . 89	175 . 1	106	5 - 50	50 - 70
YVF2 - 280S - 2	75	138 . 1	2941	92 . 7	0 . 89	238 . 7	108
YVF2 - 280M - 2	90	165 . 2	2940	93 . 0	0 . 89	286 . 5	108
YVF2 - 315S - 2	110	199 . 0	2941	93 . 3	0 . 90	350 . 1	109	5 - 50	50 - 60
YVF2 - 315M - 2	132	238 . 3	2940	93 . 5	0 . 90	420 . 2	109
YVF2 - 315L1 - 2	160	284 . 8	2940	93 . 8	0 . 91	509 . 3	109
YVF2 - 315L2 - 2	200	355 . 2	2940	94 . 0	0 . 91	636 . 6	109
YVF2 - 355M - 2	250	444 . 1	2940	94 . 0	0 . 91	795 . 8	115
YVF2 - 355L - 2	315	559 . 5	2940	94 . 0	0 . 91	1002 . 7	115
Constant Speed 1500 r/min
YVF2 - 80M1 - 4	0 . 55	1 . 61	1471	69 . 4	0 . 75	3 . 5	73	5 - 50	50 - 1 00
YVF2 - 80M2 - 4	0 . 75	2 . 08	1462	72 . 1	0 . 76	4 . 8	73
YVF2 - 90S - 4	1 . 1	2 . 89	1471	75	0 . 77	7 . 0	76
YVF2 - 90L - 4	1 . 5	3 . 78	1478	77 . 2	0 . 78	9 . 5	76
YVF2 - 100L - 4	2 . 2	5 . 2	1471	79 . 7	0 . 80	14 . 0	79
YVF2 - 1002 - 4	3	6 . 9	1470	81 . 5	0 . 81	19 . 1	79
YVF2 - 112M - 4	4	9 . 0	1468	83 . 1	0 . 81	25 . 6	80
YVF2 - 132S - 4	5 . 5	12 . 0	1471	84 . 7	0 . 82	35 . 0	86
YVF2 - 132M - 4	7 . 5	16 . 0	1472	86 . 4	0 . 83	47 . 7	86
YVF2 - 160M - 4	11	23 . 0	1471	87 . 6	0 . 83	70 . 0	90
YVF2 - 160L - 4	15	30 . 6	1470	88 . 7	0 . 84	95 . 5	90
YVF2 - 180M - 4	18 . 5	37 . 0	1470	89 . 3	0 . 85	117 . 8	91
YVF2 - 180L - 4	22	43 . 7	1470	89 . 9	0 . 85	140 . 1	91
YVF2 - 200L - 4	30	59 . 1	1 470	90 . 7	0 . 85	191 . 0	92
YVF2 - 225S - 4	37	71 . 7	1470	91 . 2	0 . 86	235 . 5	94
YVF2 - 225M - 4	45	86 . 7	1 470	91 . 7	0 . 86	286 . 5	94
YVF2 - 250M - 4	55	106	1470	92 . 1	0 . 86	350 . 1	96
YVF2 - 280S - 4	75	141	1470	92 . 7	0 . 87	477 . 5	99
YVF2 - 280M - 4	90	167	1470	93 . 0	0 . 88	573 . 0	99
YVF2 - 315S - 4	110	201	1470	93 . 3	0 . 89	700 . 3	105	5 - 50	50 - 75
YVF2 - 315M - 4	132	241	1470	93 . 5	0 . 89	840 . 3	105
YVF2 - 315L1 - 4	160	288	1470	93 . 8	0 . 90	101 8 . 6	105
YVF2 - 315L2 - 4	200	359	1470	94 . 0	0 . 90	1273 . 2	105
YVF2 - 355M - 4	250	449	1470	94 . 0	0 . 90	1591 . 5	109
YVF2 - 355L - 4	315	566	1470	94 . 0	0 . 90	2005 . 3	109
Constant Speed 1000 r/min
YVF2 - 90S - 6	0 . 75	2 . 26	975	70	0 . 72	7 . 2	72	5 - 50	50 - 1 00
YVF2 - 90L - 6	1 . 1	3 . 18	980	72 . 9	0 . 72	10 . 5	72
YVF2 - 100L - 6	1 . 5	4 . 21	982	75 . 2	0 . 72	14 . 3	76
YVF2 - 112M - 6	2 . 2	5 . 97	980	77 . 7	0 . 72	21 . 0	80
YVF2 - 132S - 6	3	7 . 94	982	79 . 7	0 . 72	28 . 6	84
YVF2 - 132M1 - 6	4	10 . 1	980	81 . 4	0 . 74	38 . 2	84
YVF2 - 132M2 - 6	5 . 5	1 3 . 4	980	83 . 1	0 . 75	52 . 5	84
YVF2 - 160M - 6	7 . 5	1 7 . 2	980	84 . 7	0 . 78	71 . 6	85
YVF2 - 160L - 6	11	24 . 5	980	86 . 4	0 . 79	105 . 0	85
YVF2 - 180L - 6	15	31 . 7	980	87 . 7	0 . 82	143 . 2	88
YVF2 - 200L1 - 6	18 . 5	39 . 7	980	88 . 6	0 . 80	176 . 7	88
YVF2 - 200L2 - 6	22	46 . 3	980	89 . 2	0 . 81	210 . 1	88
YVF2 - 225M - 6	30	61 . 6	980	90 . 2	0 . 82	286 . 5	89
YVF2 - 250M - 6	37	74 . 6	980	90 . 8	0 . 83	353 . 3	91
YVF2 - 280S - 6	45	88	980	91 . 4	0 . 85	429 . 7	93
YVF2 - 280M - 6	55	106	980	91 . 9	0 . 86	525 . 2	93
YVF2 - 315S - 6	75	147	980	92 . 6	0 . 84	716 . 2	98
YVF2 - 315M - 6	90	173	980	92 . 9	0 . 85	859 . 4	98
YVF2 - 315L1 - 6	110	211	980	93 . 3	0 . 85	1050 . 4	98
YVF2 - 315L2 - 6	132	249	980	93 . 5	0 . 86	1260 . 5	98
YVF2 - 355M1 - 6	160	301	980	93 . 8	0 . 86	1527 . 9	99
YVF2 - 355M2 - 6	200	376	980	94 . 0	0 . 86	1909 . 9	99
YVF2 - 355L - 6	250	470	980	94 . 0	0 . 86	2387 . 3	99
