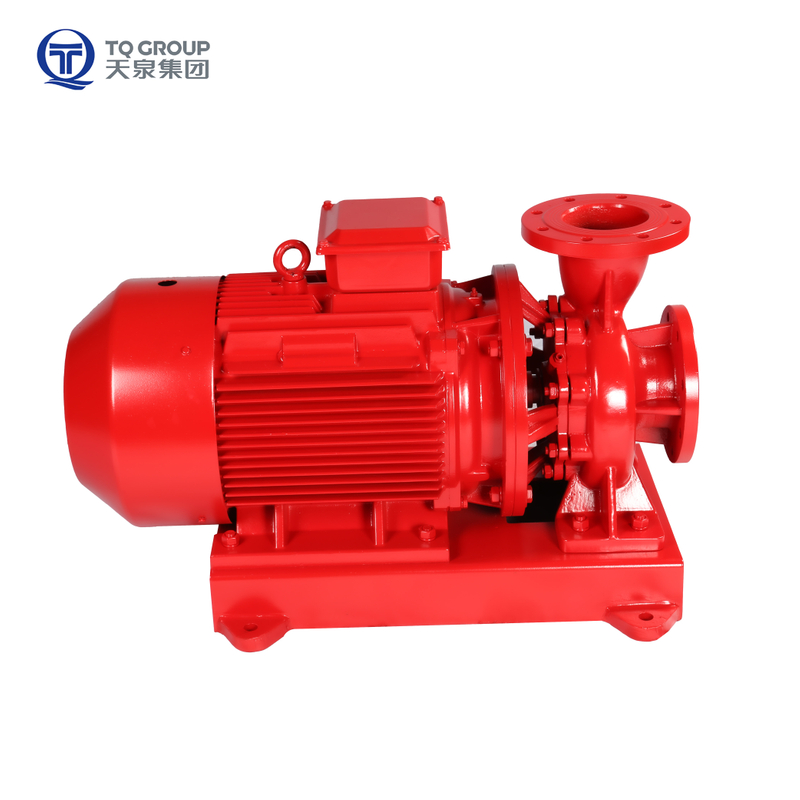

XBD-TQW Single Stage Horizontal Fire Pump

(1) The XBD-W series features a horizontal single-stage end suction design with a cantilever close-coupled structure suitable for fixed firefighting applications. The pump impeller is directly mounted on the extended shaft of the motor. Both the pump inlet and outlet are flanged connections, with axial inlet port, radial outlet port and horizontal shaft on the base. The pump does not have bearings; both axial and radial forces are supported by the motor's bearings. The pump and motor are connected via bolts on a common base.
(2) We developed this new product according to the needs of domestic industrial and mining enterprises, construction projects, and high-rise building firefighting, strictly following the international standard ISO2858 and the latest GB6245-2006 "Fire Pump" standards. The product has been sealed sampled by the National Firefighting Equipment Quality Supervision and Inspection Center, and its quality performance fully complies with the GB6245-2006 national standard. Its performance reaches the advanced level of similar domestic products.

Application

(1) The XBD-W series pumps can transport liquids below 80°C that do not contain solid particles or are physically and chemically similar to clear water, as well as slightly corrosive liquids.
(2) These pumps are mainly used for the water supply of fixed firefighting systems in industrial and civil buildings (fire hydrant extinguishing systems, automatic sprinkler extinguishing systems, and water spray extinguishing systems, etc.).
(3) These products can be used not only in independent firefighting water supply systems but also in combined firefighting and domestic (production) water supply systems, as well as for building, municipal, industrial and mining water drainage, and boiler feed water among other applications. (see figure)

Quantity:
Availability:





Inquiry Add to Basket

Model:
XBD-TQW

Product Features

Product Structure

Hydraulic Performance

Others

Product Features

The design is compact with a small footprint. The product integrates motor and pump into one unit, reducing the mounting space by 30% compared to normal horizontal pumps.
Designed with a top pull-out structure, allowing the pump to be repaired without disassembling the pump body pipe connections.
The impeller and shaft are made of stainless steel.
The performance range is broad, meeting the large flow requirements of firefighting water supply scenarios. It can also be supplied as part of a complete firefighting unit.

Model Meaning

Shanghai-Tianquan-Pump-Group-Co-Ltd- (7)

Technical Parameters

Max Flow	360m³ /h	Voltage	380V
Max Head	200 m	Frequency	50HZ
Speed	1450/2900RPM	Max Motor Power	200kW
Structure	Single Stage Horizontal Cantilever	Mounting type	B35
Outlet Diameter	DN25-DN300	Efficiency Level	IE3
Sealing type	Mechanical seal	Insulation Class	F
Working Pressure Max	PN16/PN25	Protection Class	IP55
Liquid Temperature	80C	Cooling Method	TEFC
Product Certificate	/	Thermal Protection	Optional

Product Structure

xbd-tqw

Hydraulic Performance

Model	Rated Flow (L/s)	Rated Head（MPa)	Speed(r/min)	Power(kW)
XBD4.0/10G-W	10	0.40	2900	11
XBD4.5/10G-W	10	0.45	2900	15
XBD6.0/10G-W	10	0.60	2900	15
XBD7.0/10G-W	10	0.70	2900	8.5
XBD8.0/10G-W	10	0.80	2900	22
XBD9.0/10G-W	10	0.90	2900	22
XBD10.0/10G-W	10	1.00	2900	30
XBD10.7/10G-W	10	1.07	2900	30
XBD11.0/10G-W	10	1.10	2900	30
XBD12.0/10G-W	10	1.20	2900	37
XBD12.5/10G-W	10	1.25	2900	37
XBD13.0/10G-W	10	0.30	2900	37
XBD14.0/10G-W	10	1.40	2900	45
XBD15.0/10G-W	10	1.50	2900	45
XBD4.0/15G-W	15	0.40	2900	11
XBD5.0/15G-W	15	0.50	2900	15
XBD6.0/15G-W	15	0.60	2900	8.5
XBD7.2/15G-W	15	0.72	2900	22
XBD8.0/15G-W	15	0.80	2900	22
XBD9.0/15G-W	15	0.90	2900	30
XBD10.0/15G-W	15	1.00	2900	30
XBD11.0/15G-w	15	1.10	2900	30
XBD12.0/15G-W	15	1.20	2900	30
XBD13.0/15G-W	15	1.30	2900	37
XBD14.0/15G-W	15	1.40	2900	45
XBD15.0/15G-W	15	1.50	2900	45
XBD4.0/20G-W	20	0.40	2900	15
XBD5.0/20G-W	20	0.50	2900	22
XBD6.0/20G-W	20	0.60	2900	30
XBD7.0/20G-W	20	0.70	2900	30
XBD8.0/20G-W	20	0.80	2900	37
XBD9.0/20G-W	20	0.90	2900	45
XBD10.0/20G-W	20	1.00	2900	45
XBD10.5/20G-W	20	1.05	2900	55
XBD11.0/20G-W	20	1.10	2900	45
XBD12.0/20G-W	20	1.20	2900	55
XBD12.5/20G-W	20	0.25	2900	75
XBD14.0/20G-W	20	1.40	2900	90
XBD15.0/20G-W	20	1.50	2900	110
XBD16.0/20G-W	20	1.60	2900	90
XBD4.0/25G-W	25	0.40	2900	22
XBD5.0/25G-W	25	0.50	2900	22
XBD6.0/25G-W	25	0.60	2900	30
XBD7.0/25G-W	25	0.70	2900	30
XBD8.0/25G-W	25	0.80	2900	37
XBD9.1/25G-W	25	0.91	2900	55
XBD10.0/25G-W	25	1.00	2900	45
XBD11.0/25G-W	25	1.10	2900	55
XBD12.0/25G-W	25	1.20	2900	55
XBD13.0/25G-W	25	1.30	2900	75
XBD14.0/25G-W	25	1.40	2900	90
XBD15.0/25G-W	25	1.50	2900	110
XBD4.0/30G-W	30	0.40	2900	18.5
XBD5.0/30G-W	30	0.50	2900	30
XBD6.0/30G-W	30	0.60	2900	30
XBD7.0/30G-W	30	0.70	2900	37
XBD7.1/30G-W	30	0.71	2900	45
XBD9.0/30G-W	30	0.90	2900	45
XBD10.5/30G-W	30	1.05	2900	75
XBD11.0/30G-W	30	1.10	2900	55
XBD12.0/30G-W	30	1.20	2900	75
XBD12.5/30G-W	30	1.25	2900	90
XBD14.0/30G-W	30	1.40	2900	90
XBD15.0/30G-W	30	1.50	2900	90
XBD4.0/35G-W	35	0.40	2900	22
XBD6.0/35G-W	35	0.60	2900	37
XBD7.0/35G-W	35	0.70	2900	45
XBD8.3/35G-W	35	0.83	2900	55
XBD9.0/35G-W	35	0.90	2900	55
XBD10.0/35G-W	35	1.00	2900	75
XBD11.0/35G-W	35	1.10	2900	75
XBD12.0/35G-W	35	1.20	2900	75
XBD14.0/35G-W	35	1.40	2900	90
XBD15.6/35G-W	35	1.56	2900	132
XBD5.0/40G-W	40	0.50	2900	45
XBD7.0/40G-W	40	0.70	2900	55
XBD8.0/40G-W	40	0.80	2900	55
XBD9.0/40G-W	40	0.90	2900	75
XBD10.5/40G-W	40	1.05	2900	90
XBD13.0/40G-W	40	1.30	2900	110
XBD13.0/20G-TQW	20	1.30	2900	55
XBD14.0/20G-TQW	20	1.40	2900	75
XBD15.0/20G-TQw	20	1.50	2900	75
XBD16.5/20G-TQW	20	1.65	2900	75
XBD9.0/25G-TQW	25	0.90	2900	45
XBD14.0/25G-TQW	25	1.40	2900	75
XBD15.0/25G-TQW	25	1.50	2900	90
XBD16.5/25G-TQW	25	1.65	2900	110
XBD8.0/30G-TQW	30	0.80	2900	37
XBD10.0/30G-TQW	30	1.00	2900	45
XBD13.0/30G-TQW	30	1.30	2900	75
XBD8.0/35G-TQW	35	0.80	2900	55
XBD13.0/35G-TQW	35	1.30	2900	75
XBD15.0/35G-TQW	35	1.50	2900	90
XBD16.0/35G-TQW	35	1.60	2900	110
XBD16.5/35G-TQW	35	1.65	2900	110
XBD6.0/40G-TQW	40	0.60	2900	37
XBD8.0/40G-TQW	40	0.80	2900	45
XBD9.0/40G-TQW	40	0.90	2900	55
XBD10.0/40G-TQW	40	1.00	2900	75
XBD12.0/40G-TQW	40	1.20	2900	90
XBD13.0/40G-TQW	40	1.30	2900	90
XBD14.0/40G-TQW	40	1.40	2900	110
XBD15.0/40G-TQW	40	1.50	2900	10
XBD16.0/40G-TQW	40	1.60	2900	132
XBD16.5/40G-TQW	40	1.65	2900	132
XBD5.0/45G-TQW	45	0.50	2900	37
XBD6.0/45G-TQW	45	0.60	2900	45
XBD8.0/45G-TQW	45	0.80	2900	55
XBD9.0/45G-TQW	45	0.90	2900	75
XBD10.0/45G-TQW	45	1.00	2900	90
XBD11.0/45G-TQW	45	1.10	2900	90
XBD12.0/45G-TQW	45	1.20	2900	110
XBD13.0/45G-TQW	45	1.30	2900	110
XBD14.0/45G-TQW	45	1.40	2900	32
XBD15.0/45G-TQW	45	1.50	2900	32
XBD16.0/45G-TQW	45	0.60	2900	160
XBD16.5/45G-TQW	45	1.65	2900	160
XBD6.0/50G-TQW	50	0.60	2900	55
XBD7.5/50G-TQW	50	0.75	2900	55
XBD8.0/50G-TQW	50	0.80	2900	75
XBD9.0/50G-TQW	50	0.90	2900	75
XBD10.0/50G-TQW	50	1.00	2900	90
XBD11.0/50G-TQW	50	1.10	2900	90
XBD12.0/50G-TQW	50	1.20	2900	110
XBD13.0/50G-TQW	50	1.30	2900	110
XBD14.0/50G-TQW	50	1.40	2900	132
XBD15.0/50G-TQW	50	1.50	2900	132
XBD16.0/50G-TQW	50	1.60	2900	32
XBD5.0/55G-TQW	55	0.50	2900	45
XBD7.0/55G-TQW	55	0.70	2900	55
XBD8.0/55G-TQW	55	0.80	2900	75
XBD9.0/55G-TQW	55	0.90	2900	75
XBD10.0/55G-TQW	55	1.00	2900	90
XBD11.0/55G-TQW	55	1.10	2900	110
XBD12.0/55G-TQW	55	1.20	2900	110
XBD13.0/55G-TQW	55	1.30	2900	132
XBD14.0/55G-TQW	55	1.40	2900	32
XBD15.0/55G-TQW	55	1.50	2900	160
XBD16.5/55G-TQW	55	1.65	2900	160
XBD5.0/60G-TQW	60	0.50	2900	55
XBD6.0/60G-TQW	60	0.60	2900	55
XBD7.0/60G-TQW	60	0.70	2900	75
XBD8.0/60G-TQW	60	0.80	2900	90
XBD9.0/60G-TQW	60	0.90	2900	110
XBD10.0/60G-TQW	60	1.00	2900	10
XBD11.0/60G-TQW	60	1.10	2900	132
XBD12.0/60G-TQW	60	1.20	2900	132
XBD13.0/60G-TQW	60	1.30	2900	60
XBD14.0/60G-TQW	60	1.40	2900	60
XBD15.0/60G-TQW	60	1.50	2900	185
XBD16.5/60G-TQW	60	1.65	2900	200
XBD6.0/70G-TQW	70	0.60	2900	75
XBD7.0/70G-TQW	70	0.70	2900	90
XBD8.0/70G-TQW	70	0.80	2900	90
XBD9.0/70G-TQW	70	0.90	2900	110
XBD10.0/70G-TQW	70	1.00	2900	32
XBD11.0/70G-TQW	70	1.10	2900	132
XBD12.2/70G-TQW	70	1.22	2900	132
XBD13.0/70G-TQW	70	1.30	2900	185
XBD14.0/70G-TQW	70	1.40	2900	185
XBD15.0/70G-TQW	70	1.50	2900	200
XBD16.0/70G-TQW	70	1.60	2900	200
XBD5.2/80G-TQW	80	0.52	2900	75
XBD6.0/80G-TQW	80	0.60	2900	90
XBD7.0/80G-TQW	80	0.70	2900	110
XBD8.0/80G-TQW	80	0.80	2900	110
XBD9.0/80G-TQW	80	0.90	2900	132
XBD10.0/80G-TQW	80	1.00	2900	60
XBD11.0/80G-TQW	80	1.10	2900	60
XBD12.0/80G-TQW	80	1.20	2900	185
XBD13.0/80G-TQW	80	1.30	2900	200
XBD5.0/90G-TQW	90	0.50	2900	75
XBD6.0/90G-TQW	90	0.60	2900	90
XBD7.0/90G-TQW	90	0.70	2900	110
XBD8.0/90G-TQW	90	0.80	2900	132
XBD9.0/90G-TQW	90	0.90	2900	160
XBD10.0/90G-TQW	90	1.00	2900	160
XBD11.0/90G-TQW	90	1.10	2900	185
XBD12.0/90G-TQW	90	1.20	2900	200
XBD5.5/100G-TQW	100	0.55	2900	90
XBD6.5/100G-TQW	100	0.65	2900	110
XBD7.0/100G-TQW	100	0.70	2900	132
XBD8.0/100G-TQW	100	0.80	2900	160
XBD9.0/100G-TQW	100	0.90	2900	160
XBD10.0/100G-TQW	100	1.00	2900	185
XBD11.0/100G-TQW	100	1.10	2900	200
XBD12.0/100G-TQW	100	1.20	2900	220
XBD6.0/110G-TQW	110	0.60	2900	110
XBD7.0/110G-TQW	110	0.70	2900	32
XBD8.0/110G-TQW	110	0.80	2900	132
XBD9.0/110G-TQW	110	0.90	2900	60
XBD10.0/110G-TQW	110	1.00	2900	60
XBD11.0/110G-TQW	110	1.10	2900	185
XBD12.0/110G-TQw	110	1.20	2900	220
XBD6.0/120G-TQW	120	0.60	2900	132
XBD7.0/120G-TQW	120	0.70	2900	32
XBD8.0/120G-TQW	120	0.80	2900	60
XBD9.0/120G-TQW	120	0.90	2900	185
XBD10.0/120G-TQW	120	1.00	2900	185
XBD11.0/120G-TQw	120	1.10	2900	220
XBD12.0/120G-TQW	120	1.20	2900	250
XBD6.0/130G-TQW	130	0.60	2900	132
XBD7.0/130G-TQW	130	0.70	2900	60
XBD8.0/130G-TQW	130	0.80	2900	160
XBD10.0/130G-TQW	130	1.00	2900	200
XBD11.0/130G-TQw	130	1.10	2900	220
XBD12.0/130G-TQW	130	1.20	2900	250

Model selection instructions

After sales1

Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.

If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).

If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.
