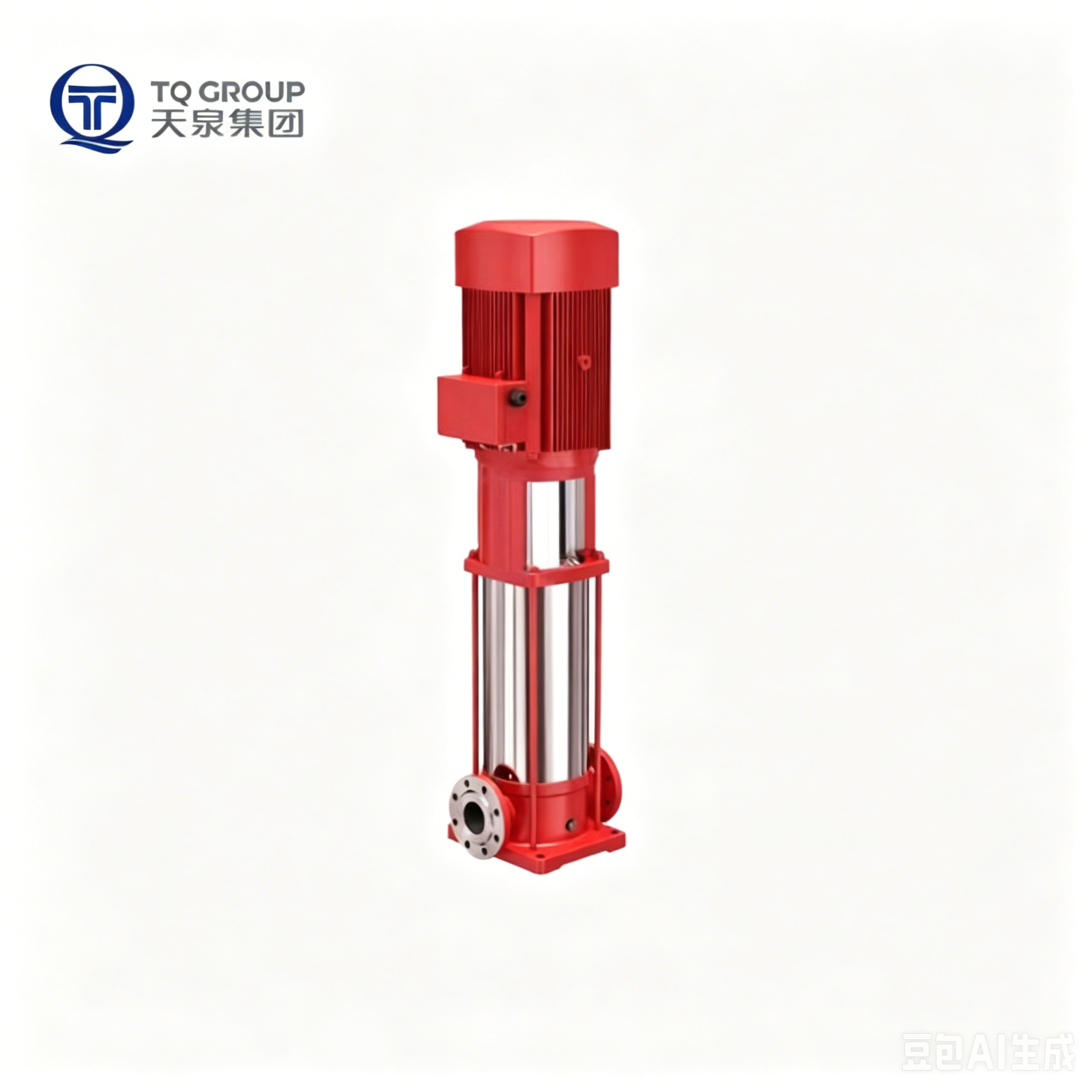

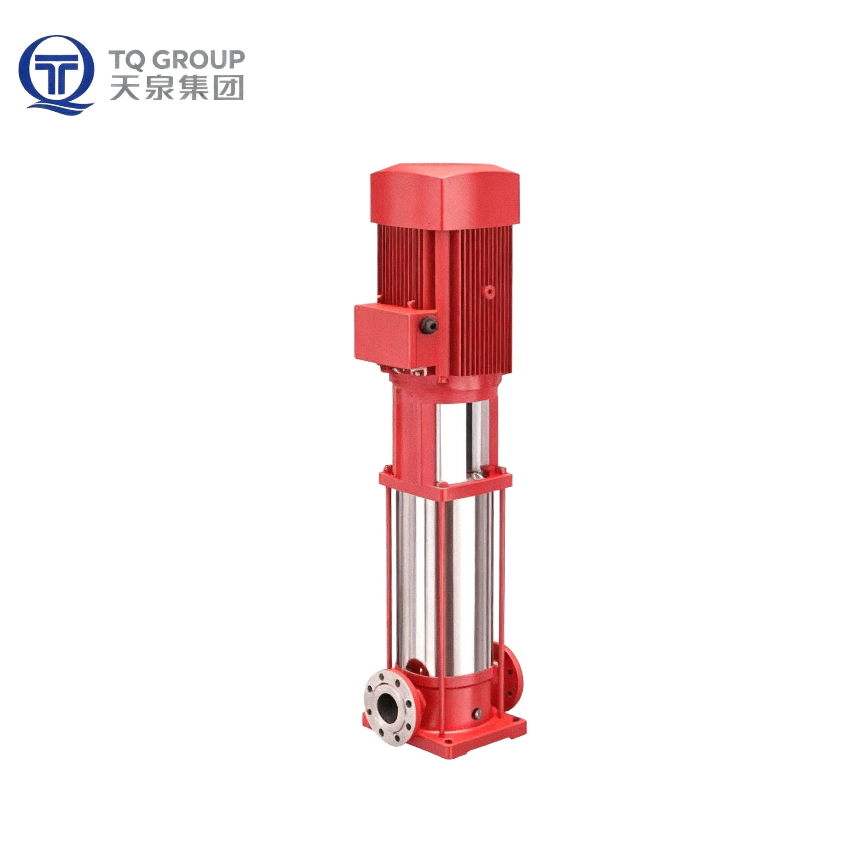

XBD-TDL Vertical Multistage Fire Pump


XBD-TDL Vertical Multi-stage Centrifugal Pump is a new generation product developed according to the standards for water supply and drainage in high-rise buildings and Chinese fire standards. Due to the adoption of an efficient and energy-saving superior hydraulic model, this type of pump has the advantages of high efficiency and a wide range of performance. Moreover, the model is optimized with a more rational distribution, which can better meet the fire protection needs of different floors and Pipe Resistance.

Application

This type of pump is particularly suitable for high-rise buildings such as residential buildings, hospitals, hotels, department stores, office buildings, etc., for water supply and drainage, fire fighting water booster or jockey systems, long-distance transportation, and water use in production process circulation.
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • XBD-TDL

Product Features
Product Structure
Hydraulic Performance
Others


Product Features



  • Compact structure, small volume, and takes up less space.


  • Convenient to replace wearing parts (mechanical seal), that is "easy to dismantle," without disassembling the motor.


  • No adjustment required for assembly, easy to disassemble, inspect, and repair.


  • Radial and axial forces are balanced hydraulically combined with bearing support.


 Before purchase1



Model Meaning


xbd-TDL



Technical Parameters


Max Flow 5 L/S  Voltage 380 v
Max Head 200 m Frequency 50 HZ
Speed

2950

 Max Motor Power 18.5kW
Structure VERTICAL Mounting type V1
Outlet Diameter DN25-DN50 Efficiency Level IE3
Sealing type MECHANICAL SEAL Insulation Class F
Working Pressure Max PN16/PN25 Protection Class IP55
Liquid Temperature -15°C~105°C Cooling Method

AIR-COOLED
Product Certificate CE Thermal Protection /



Product Structure


1




         Hydraulic Performance





Item
No.		ModelDiameterFlow
(L/S)		Head
(m)		Power
(KW)		Eff.
（%）		(NPSH)rSpeed
(RPM)
1XBD3.0/1W-TDLDN321300.75462.0 2900
2XBD3.8/1W-TDLDN321381.1462.0 2900
3XBD4.0/1W-TDLDN321381.1462.0 2900
4XBD4.5/1W-TDLDN321451.1462.0 2900
5XBD5.0/1W-TDLDN321501.5462.0 2900
6XBD5.4/1W-TDLDN321541.5462.0 2900
7XBD6.0/1W-TDLDN321601.5462.0 2900
8XBD6.6/1W-TDLDN321661.5462.0 2900
9XBD7.0/1W-TDLDN321702.2462.0 2900
10XBD7.4/1W-TDLDN321742.2462.0 2900
11XBD8.0/1W-TDLDN321802.2462.0 2900
12XBD8.6/1W-TDLDN321862.2462.0 2900
13XBD9.0/1W-TDLDN321902.2462.0 2900
14XBD9.7/1W-TDLDN321972.2462.0 2900
15XBD10.5/1W-TDLDN3211053462.0 2900
16XBD10.9/1W-TDLDN3211093462.0 2900
17XBD11.5/1W-TDLDN3211153462.0 2900
18XBD12.0/1W-TDLDN3211203462.0 2900
19XBD12.5/1W-TDLDN3211253462.0 2900
20XBD13.0/1W-TDLDN3211303462.0 2900
21XBD13.5/1W-TDLDN3211353462.0 2900
22XBD14.0/1W-TDLDN3211403462.0 2900
23XBD15.0/1W-TDLDN3211503462.0 2900
24XBD16.0/1W-TDLDN3211604462.0 2900
25XBD17.5/1W-TDLDN3211754462.0 2900
26XBD3.0/1.5W-TDLDN321.5301.1482.0 2900
27XBD3.8/1.5W-TDLDN321.5381.1482.0 2900
28XBD4.0/1.5W-TDLDN321.5401.5482.0 2900
29XBD4.5/1.5W-TDLDN321.5451.5482.0 2900
30XBD5.0/1.5W-TDLDN321.5501.5482.0 2900
31XBD5.4/1.5W-TDLDN321.5542.2482.0 2900
32XBD6.6/1.5W-TDLDN321.5662.2482.0 2900
33XBD7.4/1.5W-TDLDN321.5742.2482.0 2900
34XBD8.6/1.5W-TDLDN321.5863482.0 2900
35XBD9.7/1.5W-TDLDN321.5973482.0 2900
36XBD10.9/1.5W-TDLDN321.51094482.0 2900
37XBD12.0/1.5W-TDLDN321.51204482.0 2900
38XBD13.0/1.5W-TDLDN321.51304482.0 2900
39XBD14.0/1.5W-TDLDN321.51404482.0 2900
40XBD15.0/1.5W-TDLDN321.51504482.0 2900
41XBD3.0/2W-TDLDN402301.1522.0 2900
42XBD3.8/2W-TDLDN402381.5522.0 2900
43XBD4.5/2W-TDLDN402452.2522.0 2900
44XBD5.0/2W-TDLDN402502.2522.0 2900
45XBD5.4/2W-TDLDN402542.2522.0 2900
46XBD6.0/2W-TDLDN402603522.0 2900
47XBD6.6/2W-TDLDN402663522.0 2900
48XBD7.4/2W-TDLDN402743522.0 2900
49XBD8.6/2W-TDLDN402864522.0 2900
50XBD9.7/2W-TDLDN402974522.0 2900
51XBD10.9/2W-TDLDN4021094522.0 2900
52XBD12.0/2W-TDLDN4021205.5522.0 2900
53XBD13.0/2W-TDLDN4021305.5522.0 2900
54XBD14.0/2W-TDLDN4021405.5522.0 2900
55XBD15.0/2W-TDLDN4021505.5522.0 2900
56XBD16.0/2W-TDLDN4021607.5522.0 2900
57XBD17.0/2W-TDLDN4021707.5522.0 2900
58XBD18.5/2W-TDLDN4021857.5522.0 2900
59XBD3.0/2.5W-TDLDN402.5301.5542.0 2900
60XBD3.9/2.5W-TDLDN402.5392.2542.0 2900
61XBD4.6/2.5W-TDLDN402.5462.2542.0 2900
62XBD5.0/2.5W-TDLDN402.5502.2542.0 2900
63XBD5.4/2.5W-TDLDN402.5543542.0 2900
64XBD6.6/2.5W-TDLDN402.5663542.0 2900
65XBD7.4/2.5W-TDLDN402.5744542.0 2900
66XBD8.6/2.5W-TDLDN402.5864542.0 2900
67XBD9.7/2.5W-TDLDN402.5974542.0 2900
68XBD10.9/2.5W-TDLDN402.51095.5542.0 2900
69XBD3.0/3W-TDLDN403302.2562.0 2900
70XBD3.8/3W-TDLDN403382.2562.0 2900
71XBD4.5/3W-TDLDN403452.2562.0 2900
72XBD5.0/3W-TDLDN403503562.0 2900
73XBD5.4/3W-TDLDN403543562.0 2900
74XBD6.6/3W-TDLDN403664562.0 2900
75XBD7.4/3W-TDLDN403744562.0 2900
76XBD8.6/3W-TDLDN403864562.0 2900
77XBD9.7/3W-TDLDN403975.5562.0 2900
78XBD10.9/3W-TDLDN4031095.5562.0 2900
79XBD12.0/3W-TDLDN4031207.5562.0 2900
80XBD13.0/3W-TDLDN4031307.5562.0 2900
81XBD14.0/3W-TDLDN4031407.5562.0 2900
82XBD15.0/3W-TDLDN4031507.5562.0 2900
83XBD6.5/4W-TDLDN504655.5582.0 2900
84XBD7.0/4W-TDLDN504705.5582.0 2900
85XBD8.0/4W-TDLDN504805.5582.0 2900
86XBD9.0/4W-TDLDN504907.5582.0 2900
87XBD10.5/4W-TDLDN5041057.5582.0 2900
88XBD11.5/4W-TDLDN50411511582.0 2900
89XBD12.5/4W-TDLDN50412511582.0 2900
90XBD6.0/4.5W-TDLDN504.5605.5602.0 2900
91XBD8.2/4.5W-TDLDN504.5827.5602.0 2900
92XBD9.5/4.5W-TDLDN504.59.511602.0 2900
93XBD7.0/5W-TDLDN505707.5622.0 2900
94XBD8.0/5W-TDLDN505807.5622.0 2900
95XBD9.0/5W-TDLDN5059011622.0 2900
96XBD10.0/5W-TDLDN50510011622.0 2900
97XBD11.0/5W-TDLDN50511011622.0 2900
98XBD12.0/5W-TDLDN50512011622.0 2900
99XBD13.0/5W-TDLDN50513015622.0 2900
100XBD20.0/5W-TDLDN50520018.5622.0 2900




Model selection instructions


After sales1

  • Users' selection shall not be limited by the performance parameters list. Parameters in the catalog are only for reference. We could design and manufacture the product according to the actual requirements. If there is a special selection beyond the sample performance parameters, please get in touch with our technical support.


  • If the selected model is close to performance parameters, generally standard impeller pumps and high-speed pumps are preferred. (NPSH shall meet the requirements).


  • If a high-voltage motor or special motor is required, please DO NOT make the foundation according to the installation dimension of the sample. Our technical support shall customize the drawings.
